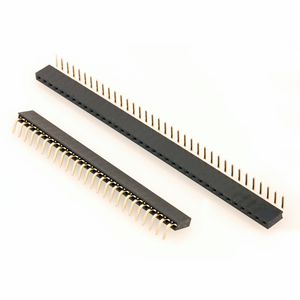

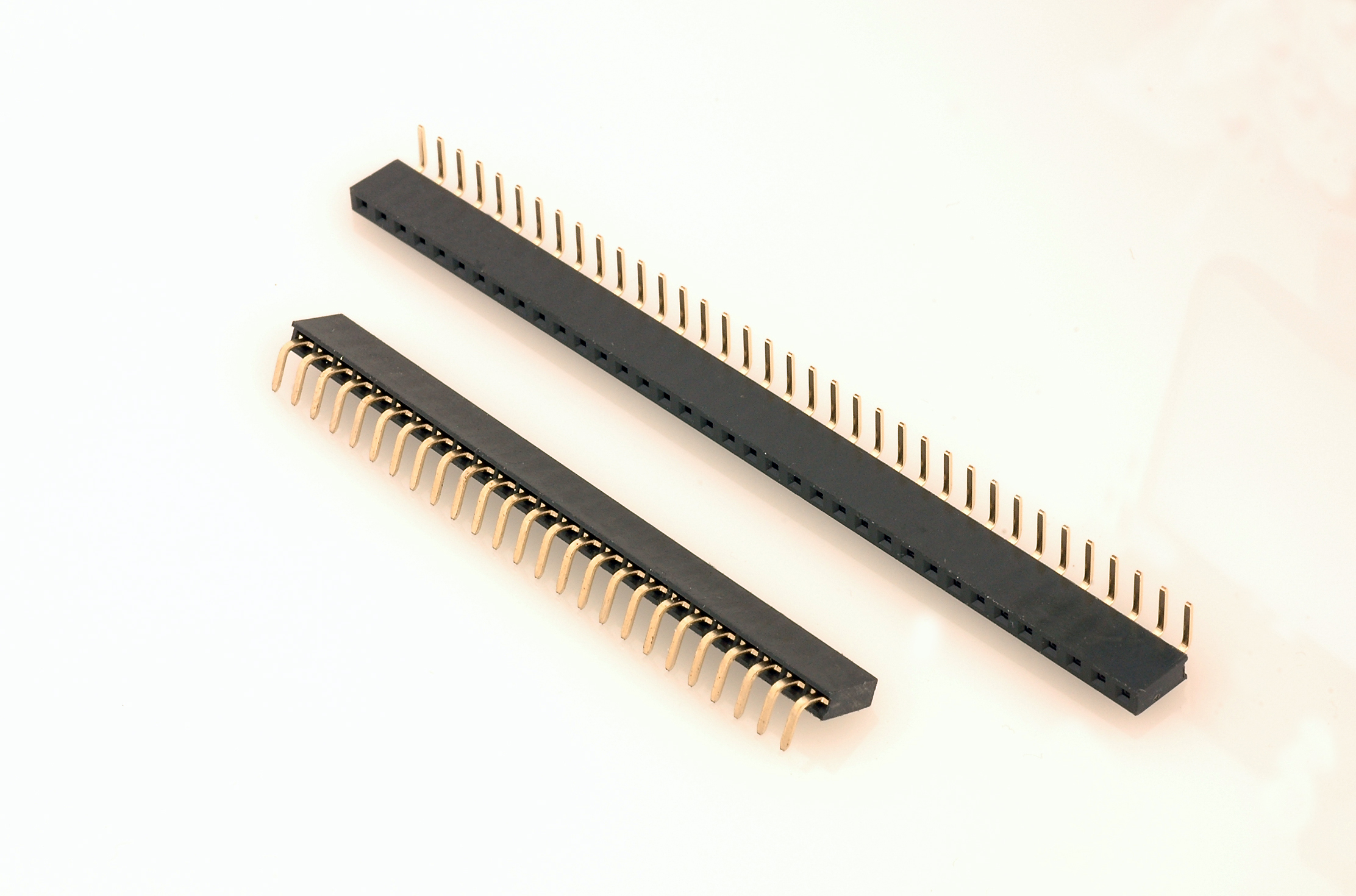

• F1RC57SxxGFBA33000V Female Header Right Angle / Single Row / Base Height 5.7mm

    F1RC57SxxGFBA33000V Female Header Right Angle / Single Row / Base Height 5.7mm

    Specifications:

    Current & Voltage Rating: 3A & 25Vac max.
    Insulation Resistance: 5000 MΩ min.
    Contact Resistance: 20 mΩ max.
    Dielectric Withstanding : AC 600V
    Operating Temperature : -25℃~+85℃
    Contact Material : Phosphor Bronze
    Insulator Material : Polyester,UL94V-0
    Standard : P.B.T
    Finish : 0.6u" Gold plated

    PDF
