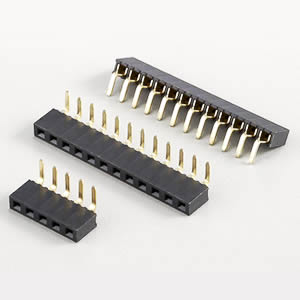

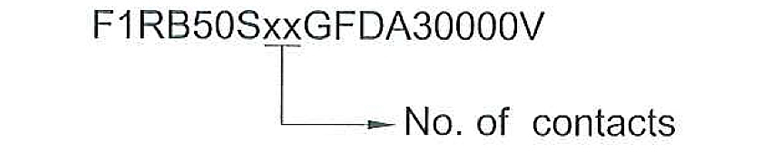

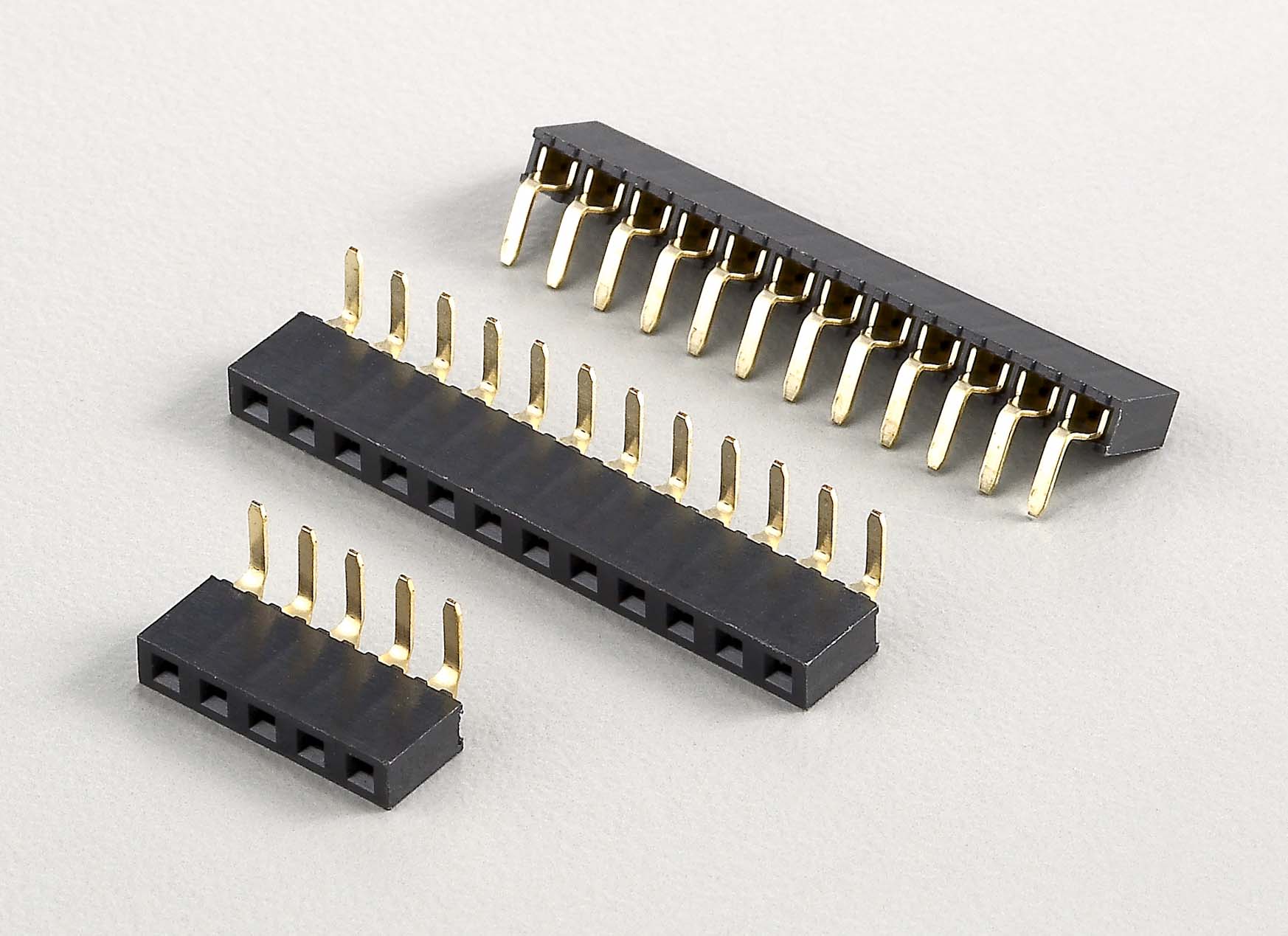

• F1RB50SxxGFDA30000V Female Header Right Angle / Single Row / Base Height 5.0mm
    F1RB50SxxGFDA30000V Female Header Right Angle / Single Row / Base Height 5.0mm

    F1RB50SxxGFDA30000V Female Header Right Angle / Single Row / Base Height 5.0mm

    Specifications:

    Current Rating: 3A
    Insulation Resistance: 1000 MΩ min.
    Contact Resistance: 20 mΩ max.
    Dielectric Withstanding : AC 600V
    Operating Temperature : -40℃~+105℃
    Max. Processing Temp. : 245±5℃ for 3~5 seconds
    Contact Material : Phosphor Bronze
    Insulator Material : Nylon-6T,UL94V-0(Black)
    Finish : 0.6u" Gold plated on contact area
    Packing : Tray
