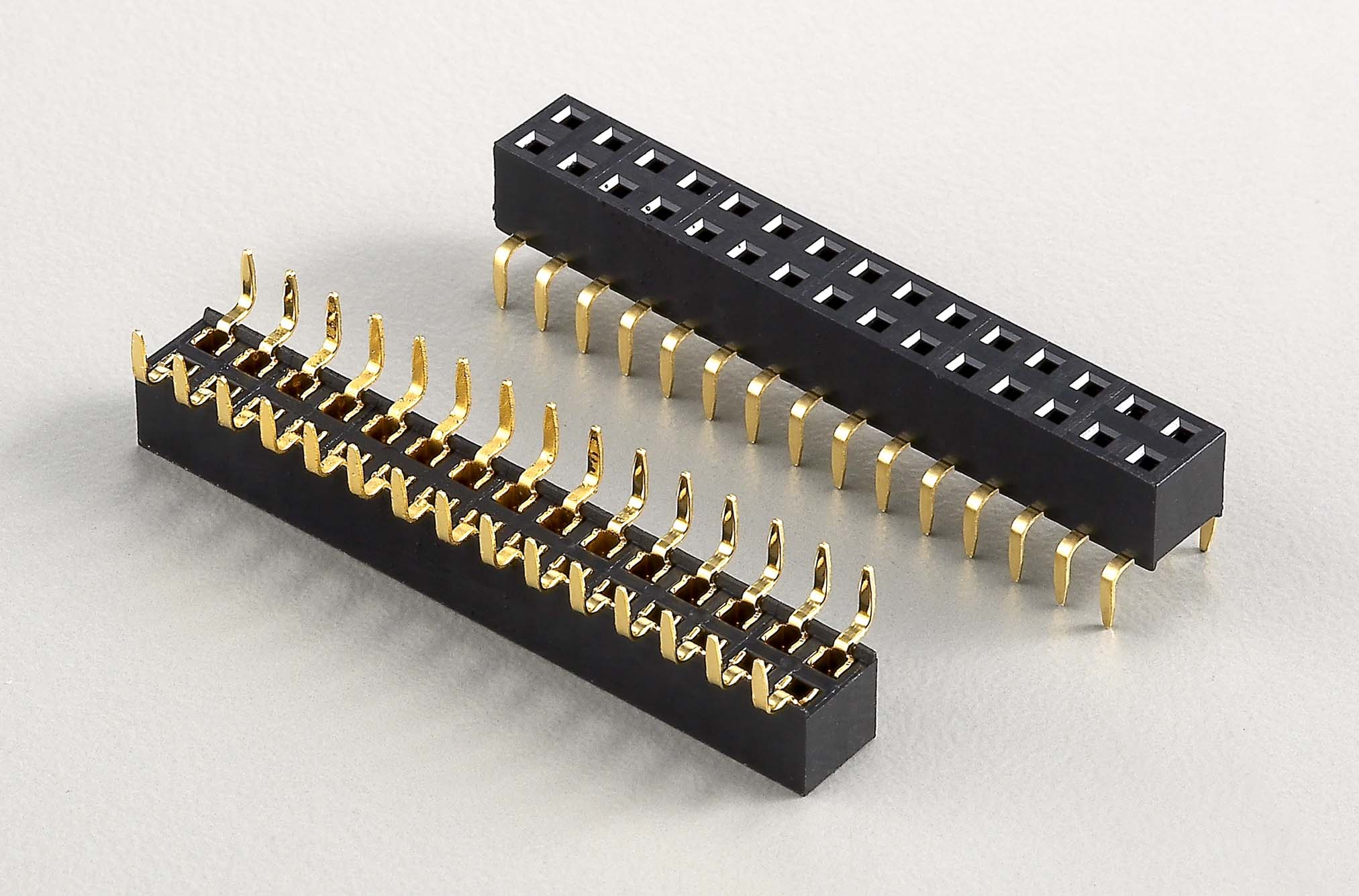

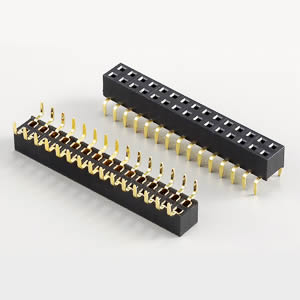

• F1SI50DxxGFBA51000x Female Header Dual Entry / Dual Rows / Base Height 5.0mm
    F1SI50DxxGFBA51000x Female Header Dual Entry / Dual Rows / Base Height 5.0mm

    F1SI50DxxGFBA51000x Female Header Dual Entry / Dual Rows / Base Height 5.0mm

    Specifications:

    Current & Voltage Rating: 3A & 25Vac max.
    Insulation Resistance: 5000 MΩ min.
    Contact Resistance: 20 mΩ max.
    Dielectric Withstanding : AC 1000V
    Operating Temperature : -25℃~+85℃
    Contact Material : Phosphor Bronze
    Insulator Material : PBT,UL94V-0(Black)
    Finish : 0.6u" Gold plated on contact area
