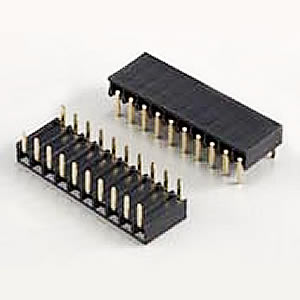

• F1RD34SxxGFDA31000V Female Header Side Entry / Single Row / Base Height 3.4mm

    F1RD34SxxGFDA31000V Female Header Side Entry / Single Row / Base Height 3.4mm

    Specifications:

    Current Rating: 3Amps
    Insulation Resistance: 1000 MΩ min.
    Contact Resistance: 20 mΩ max.
    Dielectric Withstanding : AC 600V
    Operating Temperature : -40℃~+105℃
    Max. Processing Temp. : 230℃ for 10 seconds
    Contact Material : Phosphor Bronze
    Standard : Nylon-6T
    Finish : Gold Flash Over
