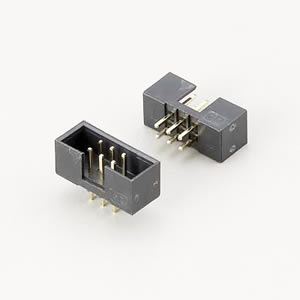

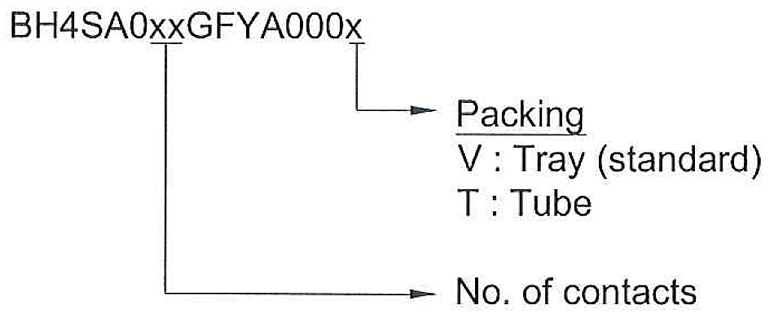

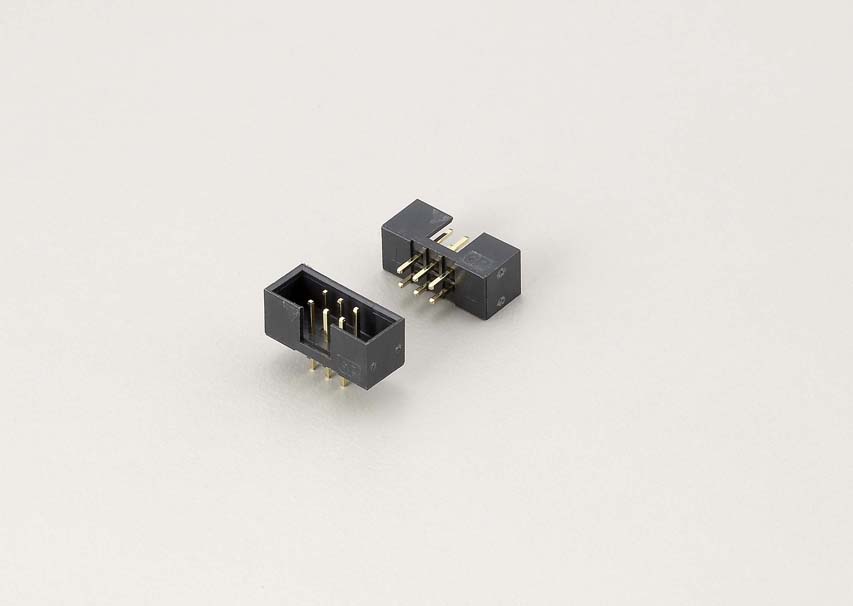

BH4SA0xxGFYA000x Box Header Straight

Specifications:

Current & Voltage Rating: 1A & 12Vac max.
Insulation Resistance: 1000 MΩ min.
Dielectric Withstanding : AC 500V
Operating Temperature : -40℃~+105℃
Max. Processing Temp. : 245±5℃ for 3~5 seconds
Contact Material : Brass
Insulator Material : Nylon-6T(H.F.),UL94V-0(Black)
Finish : 0.6u" Gold plated on contact area
