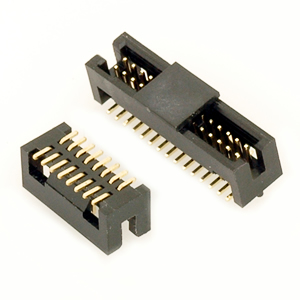

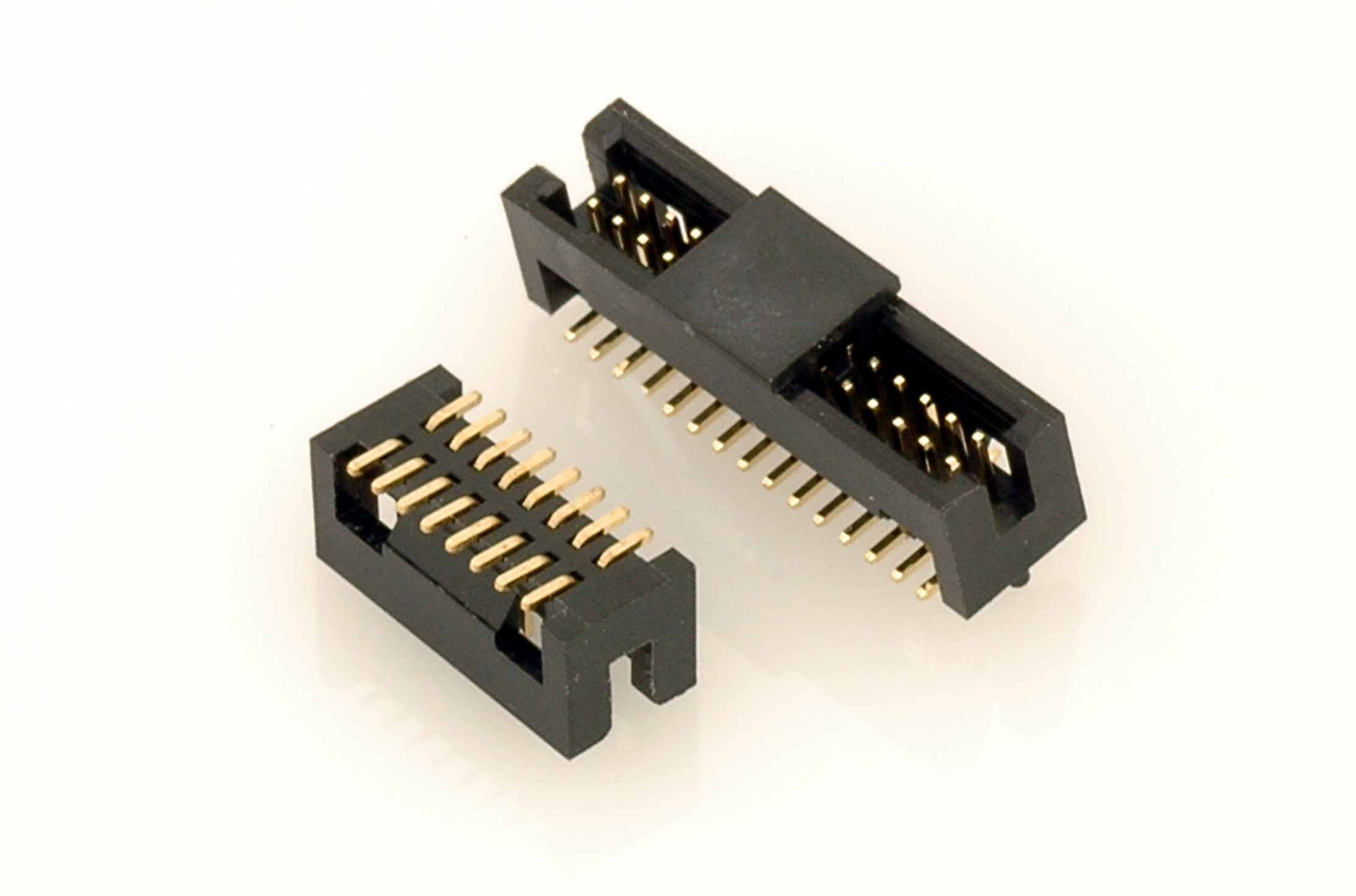

• BH4MD3xxGFCA001x Box Header SMT
    BH4MD3xxGFCA001x Box Header SMT

    BH4MD3xxGFCA001x Box Header SMT

    Specifications:

    Current Rating: 1A
    Insulation Resistance: 1000 MΩ min.
    Contact Resistance: 20 mΩ max.
    Dielectric Withstanding : AC 300V
    Operating Temperature : -40℃~+105℃
    Contact Material : Brass
    Insulator Material : Nylon-6T,UL94V-0
    Finish : 0.6u" Gold plated on contact area

    PDF
