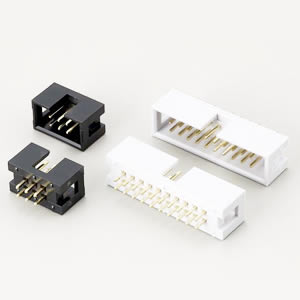

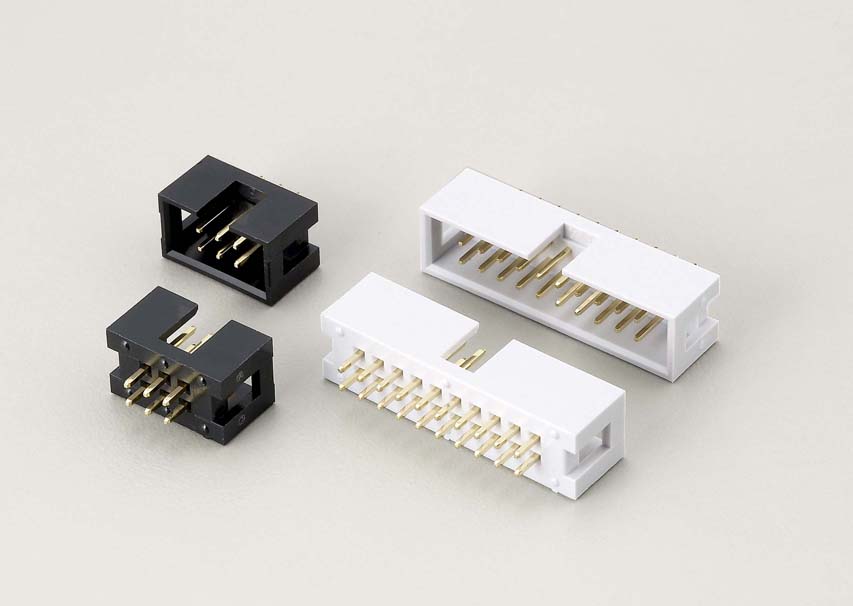

BH1SA0xxxxxx000V Box Header Straight

Specifications:

Current & Voltage Rating: 3A & 25Vac max.
Insulation Resistance: 5000 MΩ min.
Dielectric Withstanding : AC 500V
Operating Temperature : -25℃~+85℃(PBT)/-40℃~+105℃(NY6T)
Max. Processing Temp. : 245±5℃ for 3~5 seconds(NY6T)

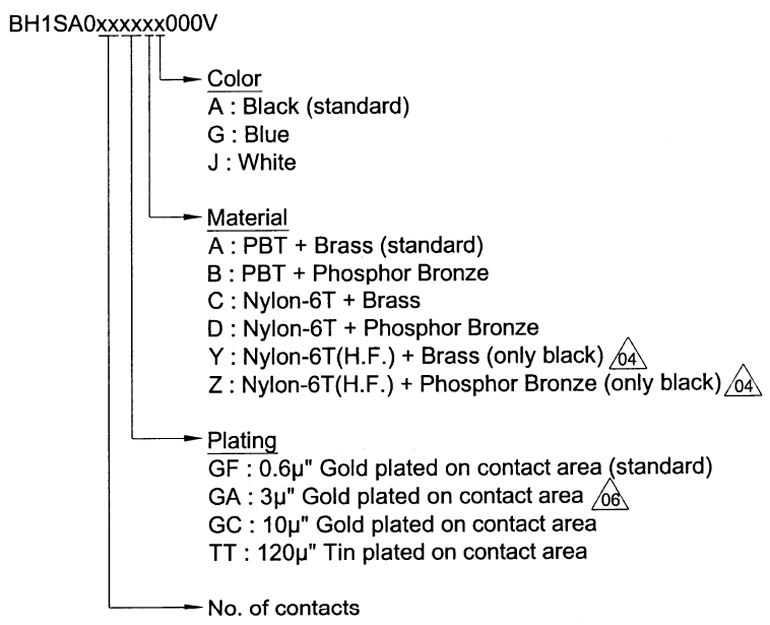

Contact Material : See order information
Insulator Material : PBT/Nylon-6T/LCP/Nylon-6T(H.F.),UL94V-0(Black)
Finish : See order information
Packing : Tray
