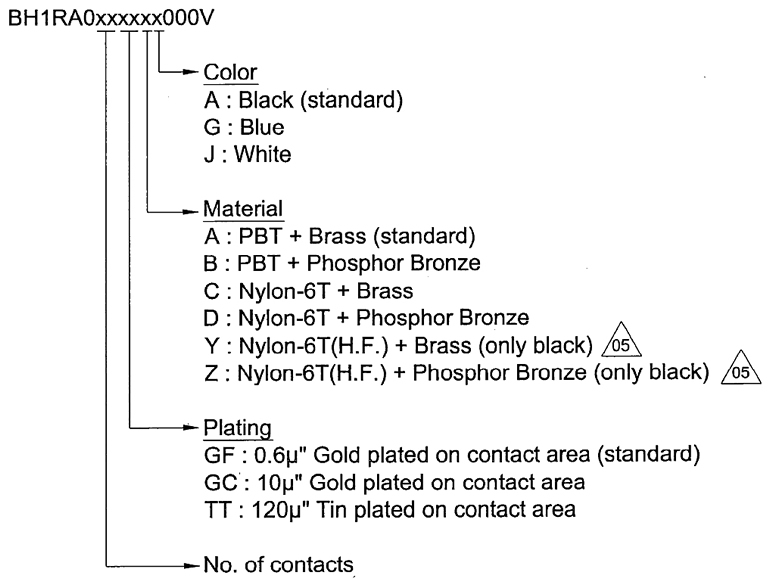

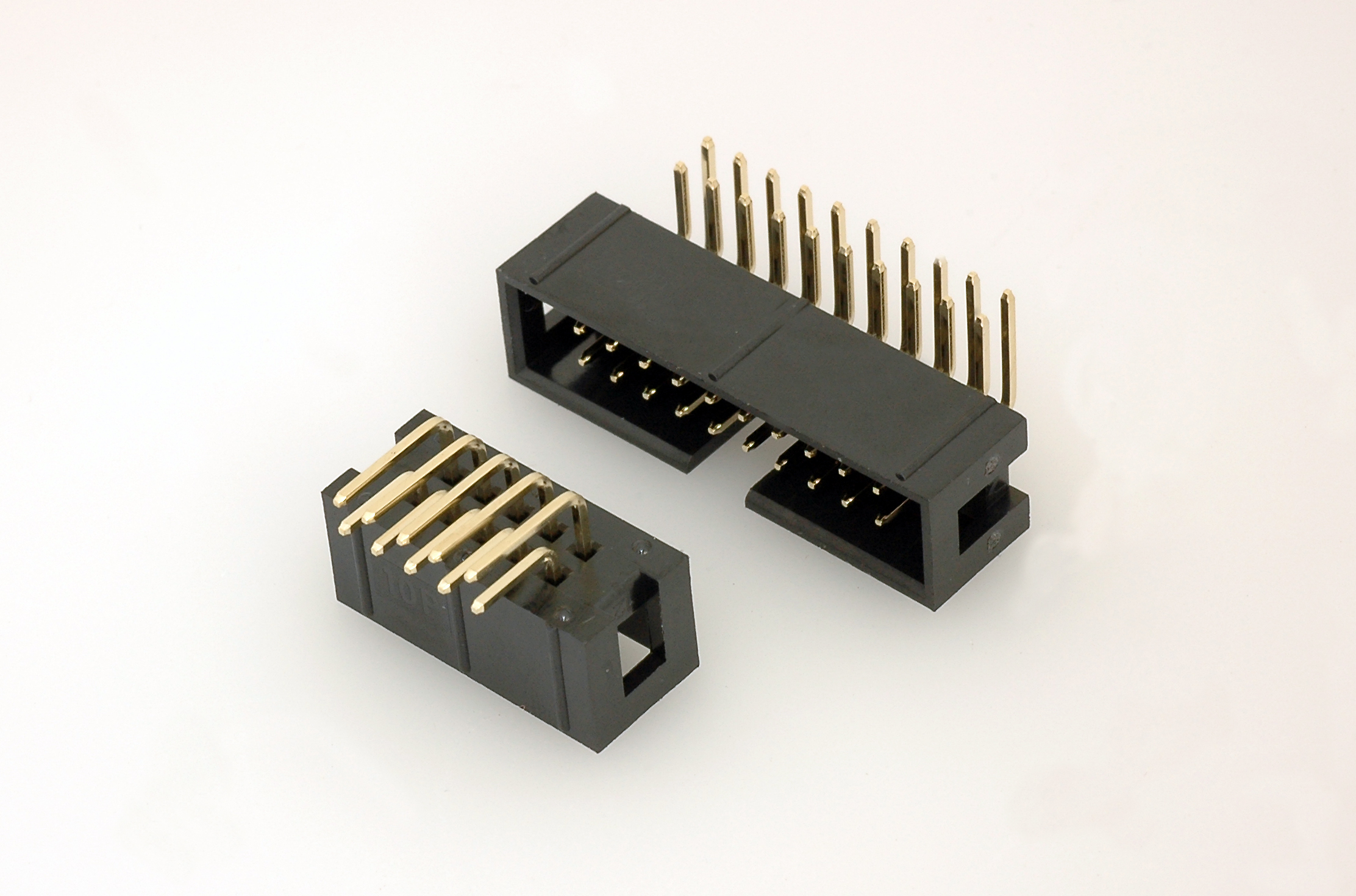

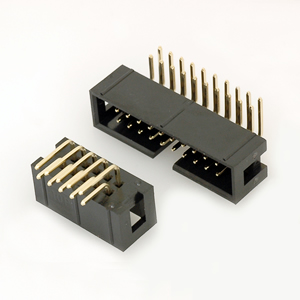

BH1RA0xxxxxx000V Box Header Right Angle

Specifications:

Current & Voltage Rating: 3A & 25Vac max.
Insulation Resistance: 5000 MΩ min.
Contact Resistance: 20 mΩ max.
Dielectric Withstanding : AC 500V
Operating Temperature : -25℃~+85℃(PBT)/-40℃~+105℃(NY6T)
Max. Processing Temp. : 245±5℃ for 3~5 seconds(NY6T)
Contact Material : Brass/Phosphor Bronze
Insulator Material : PBT/Nylon-6T/Nylon-6T(H.F.),UL94V-0(Black)
Finish : 0.6u" Gold plated on contact area/10u" Gold plated on contact area/120u" Tin plated on contact area
Packing : Tray
