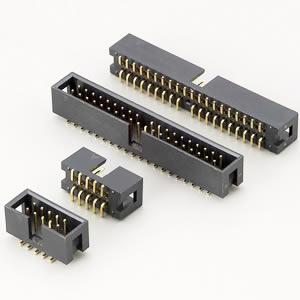

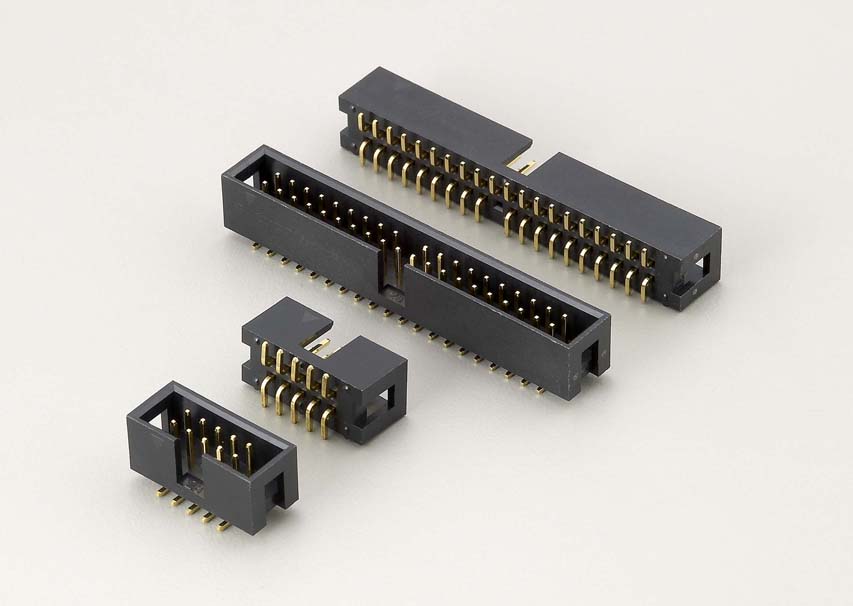

BH1MC0xxxxxx000x Box Header SMT

Specifications:

Current & Voltage Rating: 3A & 25Vac max.
Insulation Resistance: 5000 MΩ min.
Dielectric Withstanding : AC 500V
Operating Temperature : -40℃~+105℃
Max. Processing Temp. : 245±5℃ for 3~5 seconds
Contact Material : Brass/Phosphor Bronze
Insulator Material : Nylon-6T/Nylon-6T(H.F.),UL94V-0(Black)

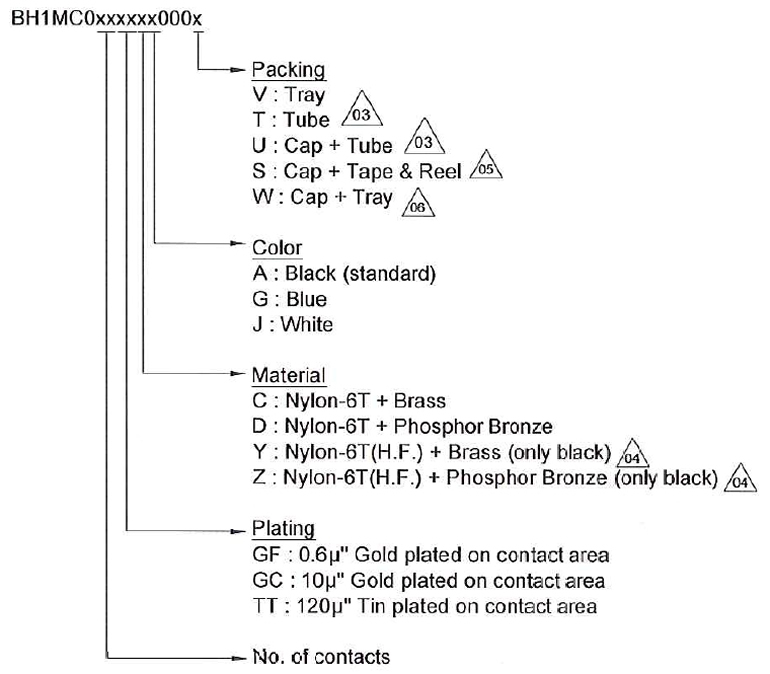

Finish : See order information
Packing : Tray
