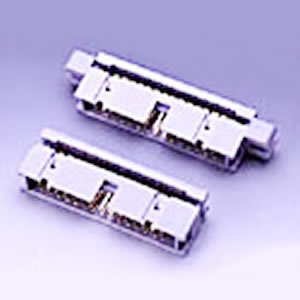

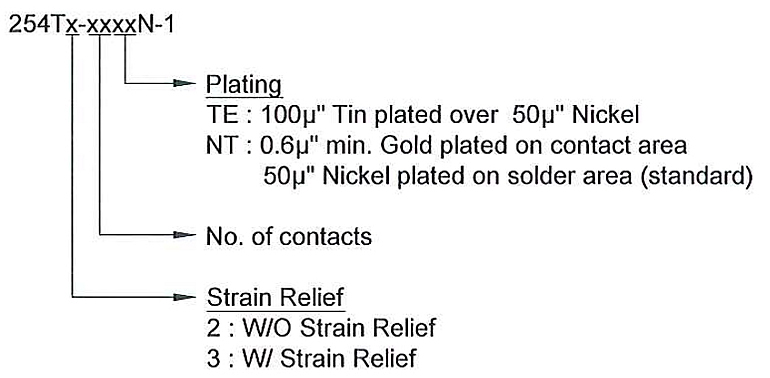

• 254Tx-xxxxN-1 IDC Box Header
    254Tx-xxxxN-1 IDC Box Header

    254Tx-xxxxN-1 IDC Box Header

    Material:

    Insulator : PBT+30% Glass fiber(UL94V-0)
    Contact : Brass
    Contact Plated : Gold or Tin over Nickel plated

    Specifications:

    Current Rating: 1A
    Withstanding Voltage : AC500V for 1 minute
    Insulation Resistance: 1000 MΩ min. at DC 500V
    Contact Resistance: 15 mΩ max.
    Operating Temperature : -40℃~+105℃
