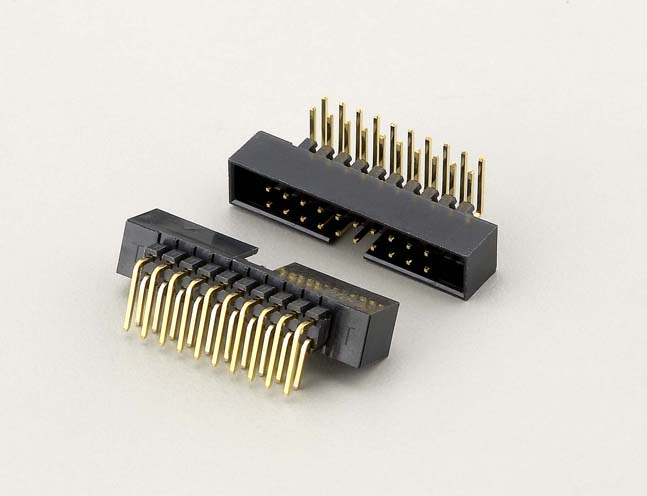

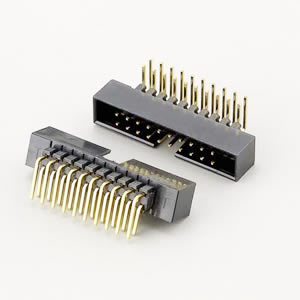

BS2RG020GFGA11725000V Board Spacer Right Angle

Specifications:

Current & Voltage Rating: 2A & 20Vac max.
Insulation Resistance: 3000 MΩ min.
Contact Resistance: 20 mΩ max.
Dielectric Withstanding : AC 500V
Operating Temperature : -40℃~+105℃
Max. Processing Temp. : 245±5℃ for 3~5 seconds
Contact Material : Brass
Insulator Material(Box Header) : Nylon-9T,UL94V-0(Black)
Insulator Material(Pin Header) :Nylon-6T(H.F.),UL94V-0(Black)
Finish : 0.6u" Gold plated on contact area
Packing : Tray
