• 100E-xxP Wire to Board Connector

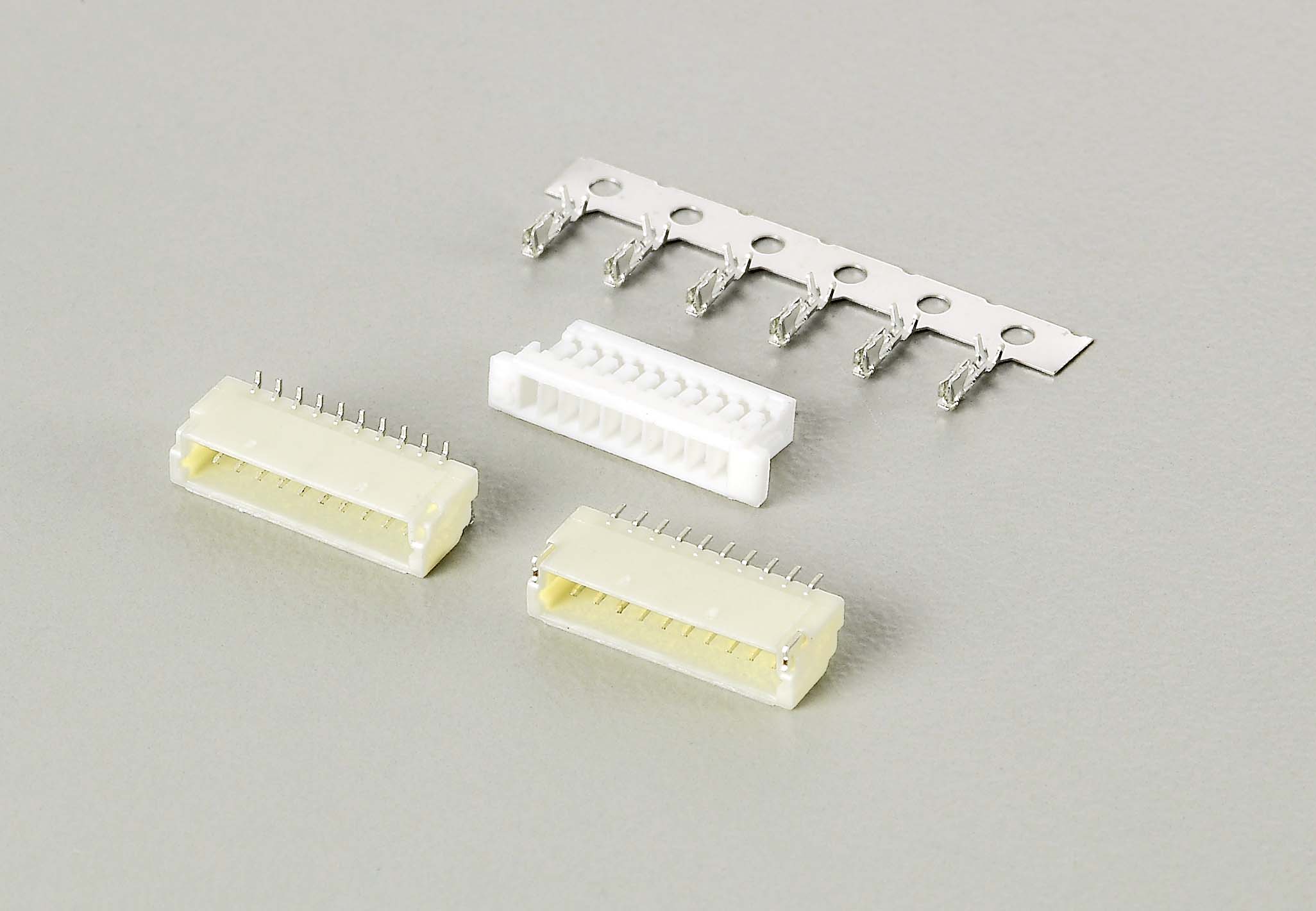

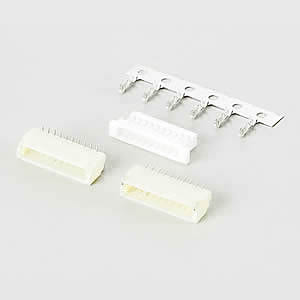

    100E-xxP Wire to Board Connector

    100E-xxP Wire to Board Connector

    Specifications:

    Current Rating : 1 AC/DC
    Voltage Rating : 50V AC max.
    Insulation Resistance: 100 MΩ min.
    Contact Resistance: 20 mΩ max.
    Dielectric Withstanding: AC 500v/minute
    Operating Temperature: -25℃ ~ +85℃
    Insulation Material: PBT, UL 94v-0(Natural)
    Packing : Bag

    PDF
