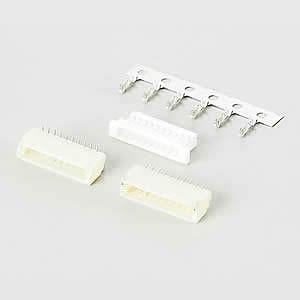

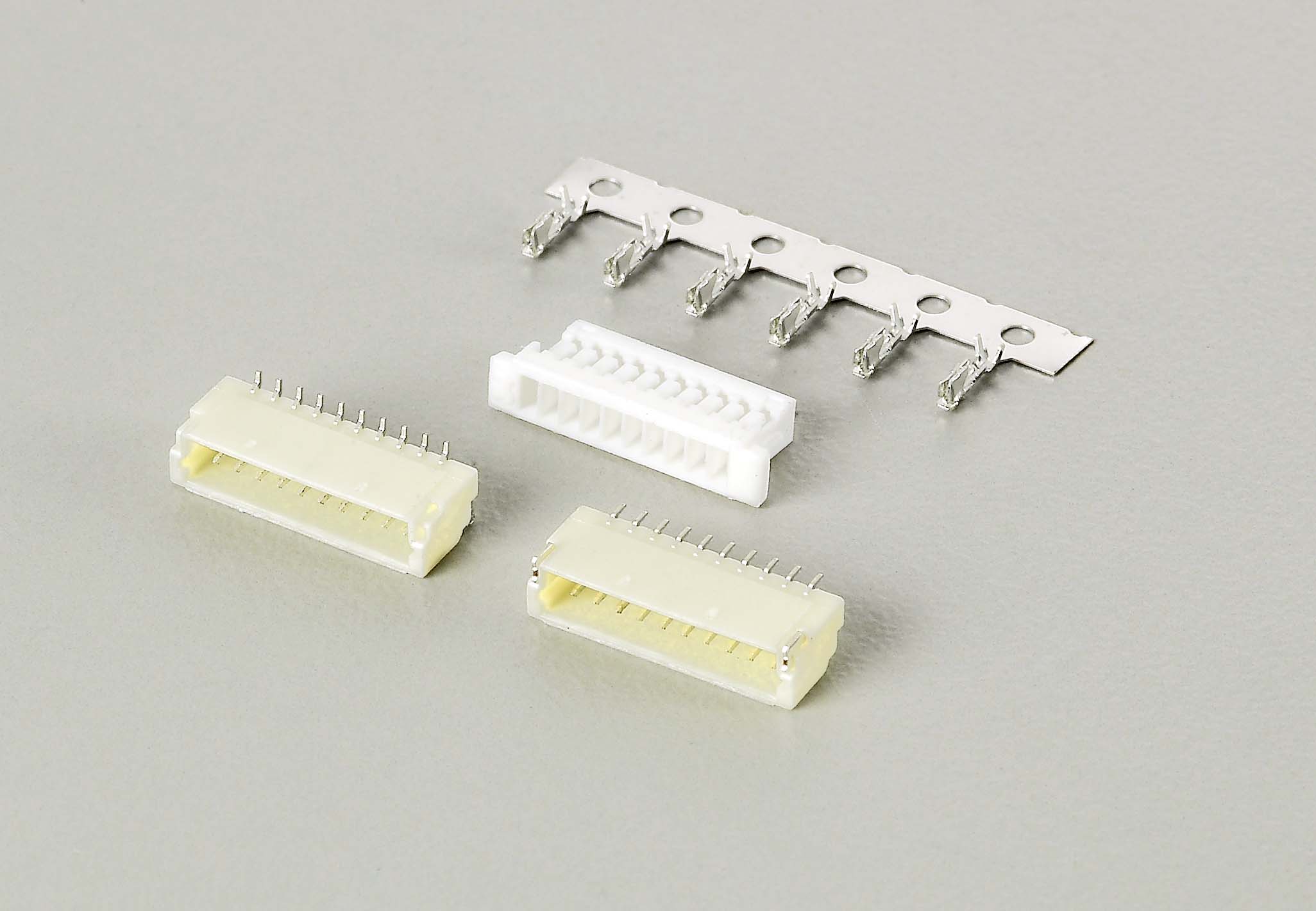

• 100E-T Wire to Board Connector

    100E-T Wire to Board Connector

    Specifications:

    Current Rating : 1 AC/DC
    Voltage Rating : 50V AC max.
    Operating Temperature: -25℃ ~ +85℃
    Insulation Resistance: 100 MΩ min.
    Dielectric Withstanding: AC 500v/minute
    Contact Resistance: 20 mΩ max.
    Terminal Material: Phosphor Bronze/Tin-Plated
    Wire Range : 28 to 32AWG
