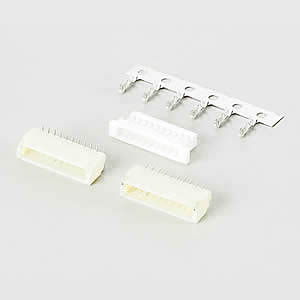

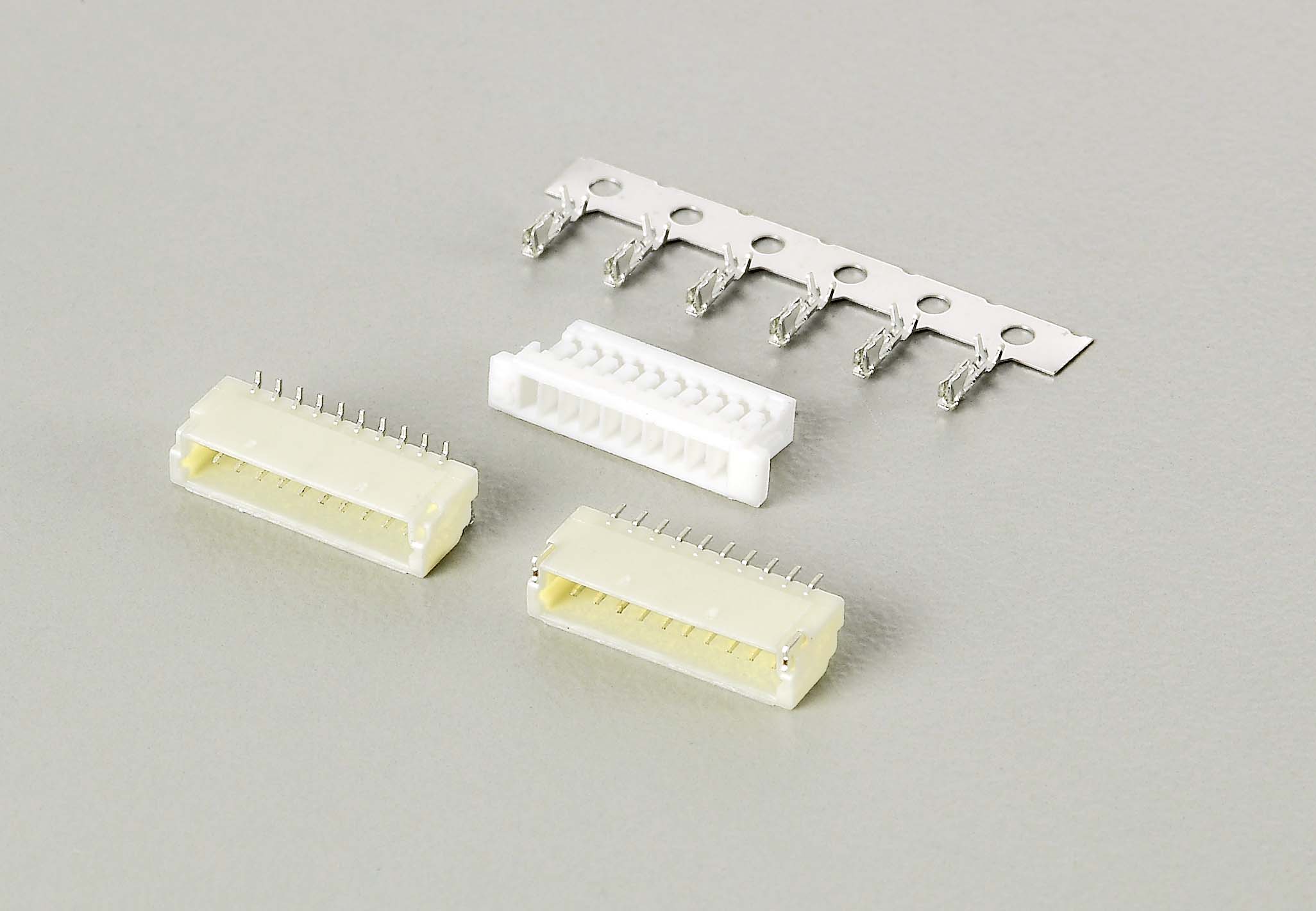

100E-SS-xxT Wire to Board Connector

Specifications:

Electrical
Voltage Rating : 50V(AC)
Current Rating : 1.0 A
Contact Resistance: 20 mΩ max.
Dielectric Withstanding Voltage: 500V AC/min.
Insulation Resistance : 100 MΩ min.
Material and Finish
Circuits : 2-16P &20P
Insulation : Nylon-6T,UL 94v-0
Color : Natural
Contact : Phosphor Bronze/Tin-plated
Plating : Tin plated
Temperature Range : -40℃ ~ +105℃
