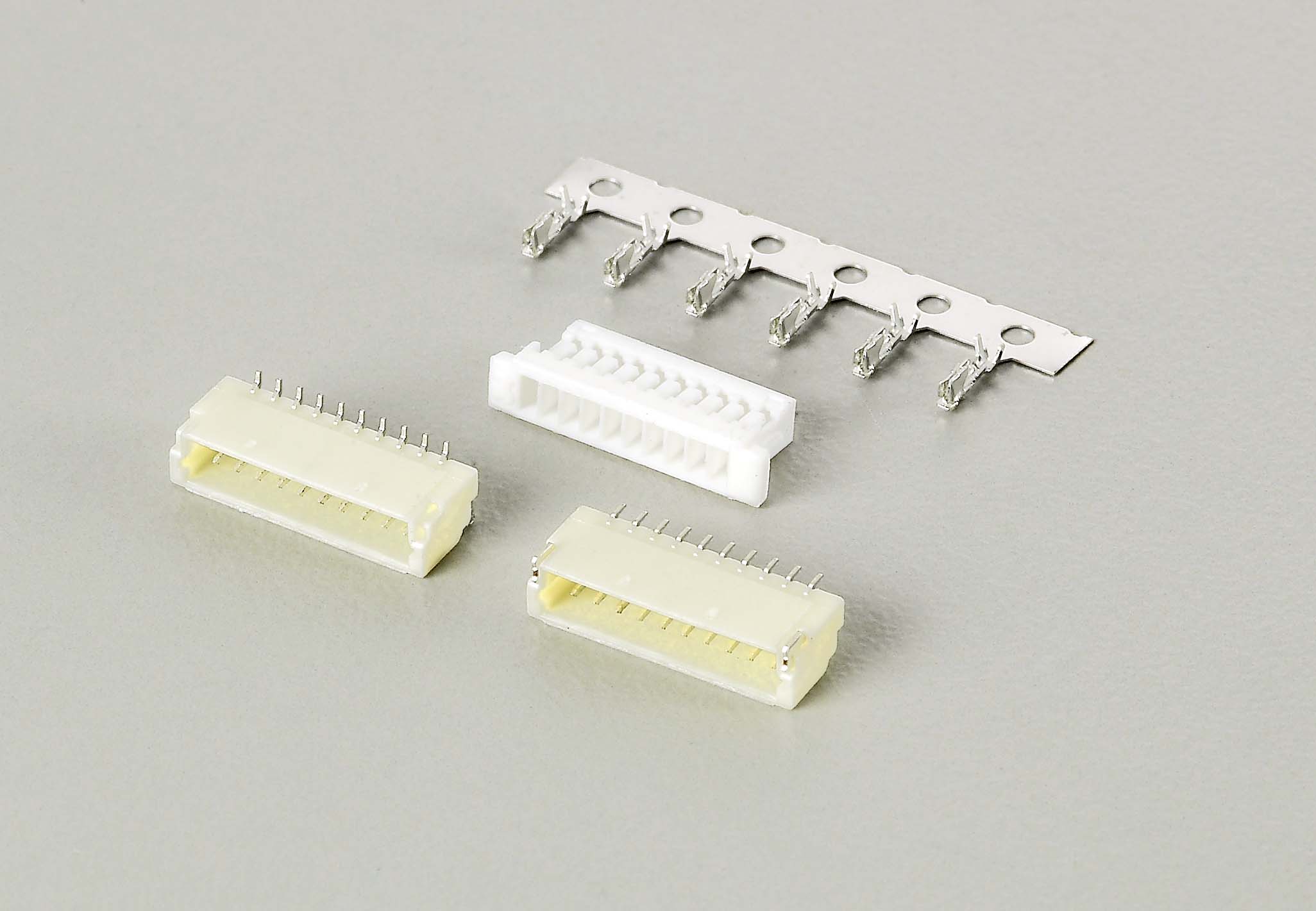

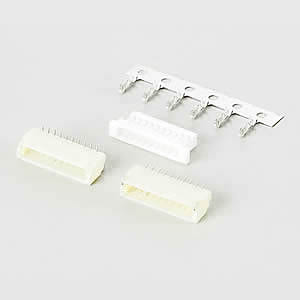

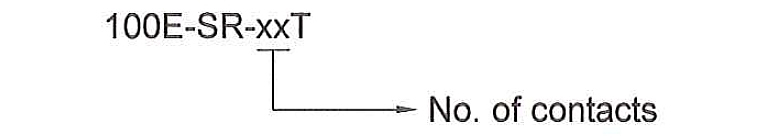

100E-SR-xxT Wire to Board Connector

Specifications:

Circuits : 2-16P & 20P
Current & Voltage Rating : 1A & 50Vac max.
Insulation Resistance: 100 MΩ min.
Contact Resistance: 20 mΩ max.
Dielectric Withstanding: AC 500V for 1 minute
Operating Temperature: -40℃ ~ +105℃
Contact Material : Phosphor Bronze
Insulation Material: Nylon-6T, UL 94v-0(Natural)
Finish : Tin plated
Packing : Tube
