• 150A-SS-xxT Wire to Board Connector

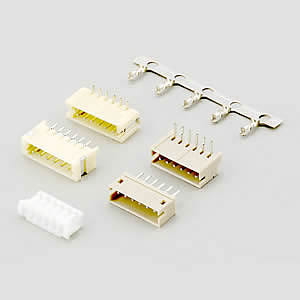

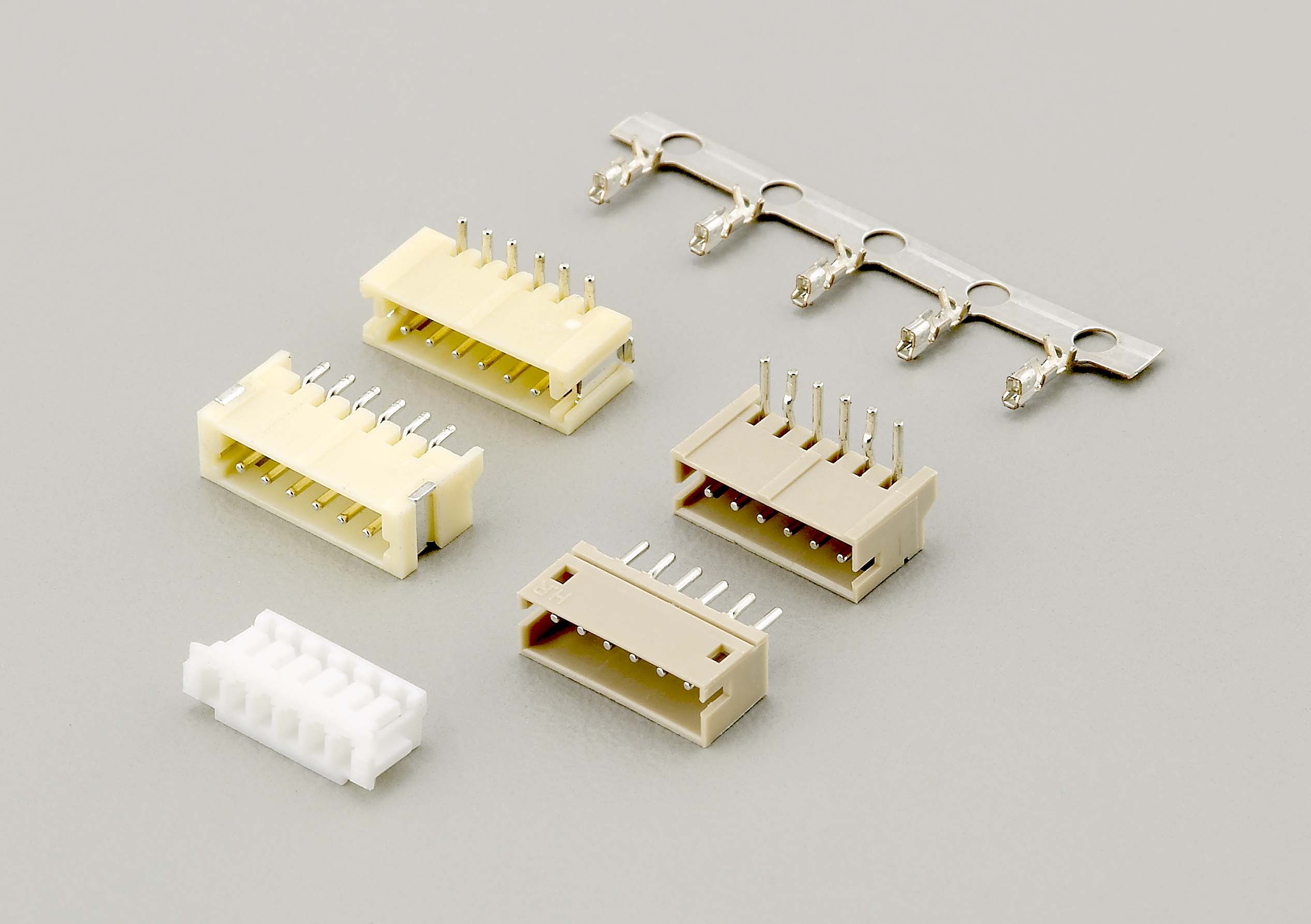

    150A-SS-xxT Wire to Board Connector

    Specifications:

    Current Rating : 1A AC,DC
    Voltage Rating : 100V AC, DC.
    Temperature Range: -25℃ ~ +85℃
    Contact Resistance: 20 mΩ max.
    Insulation Resistance: 500 MΩ min.
    Withstanding Voltage : 500V AC/minute
    Material: Pin-Brass/Tin-plated/Base-Nylon 6T UL 94v-0

    PDF
