• 200G-WS-xxT Wire to Board Connector

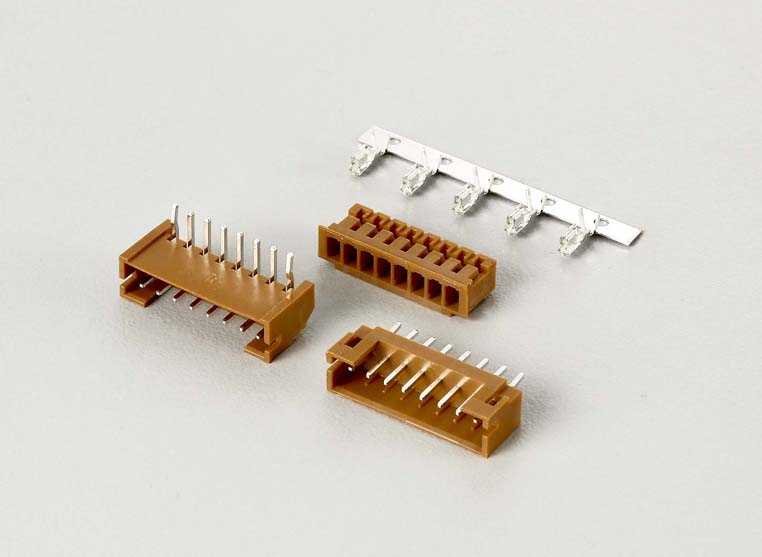

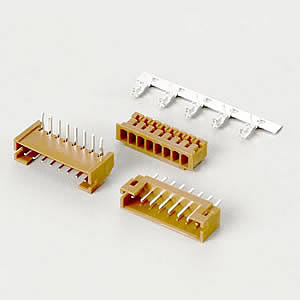

    200G-WS-xxT Wire to Board Connector

    Specifications:

    Current Rating: 2A AC, DC
    Voltage Rating: 100V AC, DC
    Contact Resistance: 20 mΩ max.
    Insulation Resistance: 1000 MΩ min.
    Withstanding Voltage  : AC 800V
    Temperature Range : -25℃~+85℃
    Pin Material : Brass/Tin Plated
    Material : Nylon-66,UL94V-0
    Poles : 2-15
    Application P.C.B Thickness : 0.8~1.6mm
