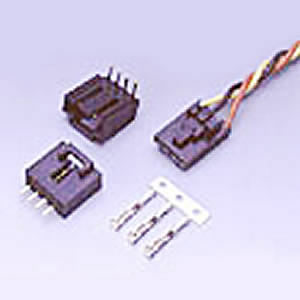

254L-WR-xxx Shrouded Header

Specifications:

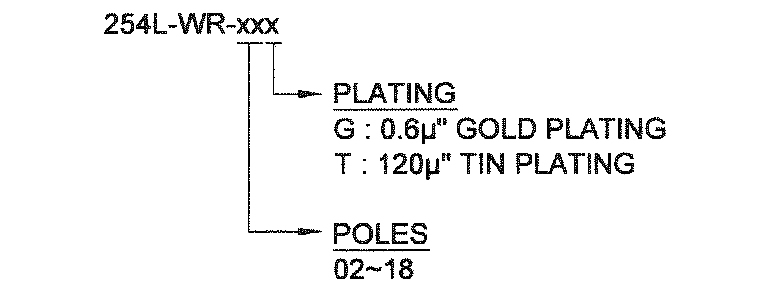

Poles : 2-18
Material : Insulator : PBT UL94V-0 Black
Contact : 0.64mm Square Pin, Brass
Mate with CH2543 series housing
Current Rating : 2.5A AC, DC
Voltage Rating : 250V AC, DC
Temperature Range : -25℃~+85℃
Insulation Resistance: 1000 MΩ min.
Withstanding Voltage : 600 AC/Minute
Applicable PC Board Thickness : 1.6mm
