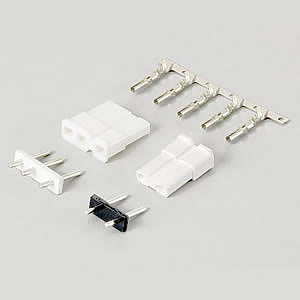

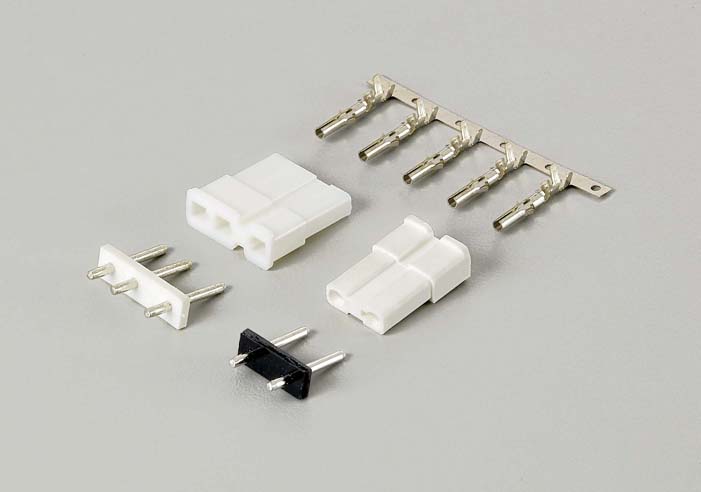

4155A-WS-xxT-1 Wire to Board Power Connector

Specifications:

Current Rating : 2A
Voltage Rating : 250V AC, 350V DC
Withstanding Voltage : 1000V AC/ min.
Insulation Resistance : 1000 MΩ/ min.
Operation Temp : -25℃~+85℃
Applicable PC Board Thickness : 1.6mm
Contact Resistance : 10MΩ/ min.
After Environment Testing : 20 MΩ max.
Contact Material : Brass
Pin Material : Brass, Tin plated
Bass : Bakelite
