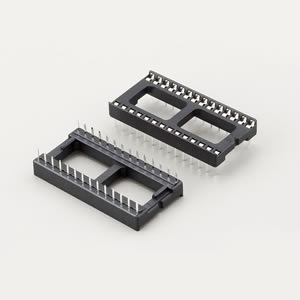

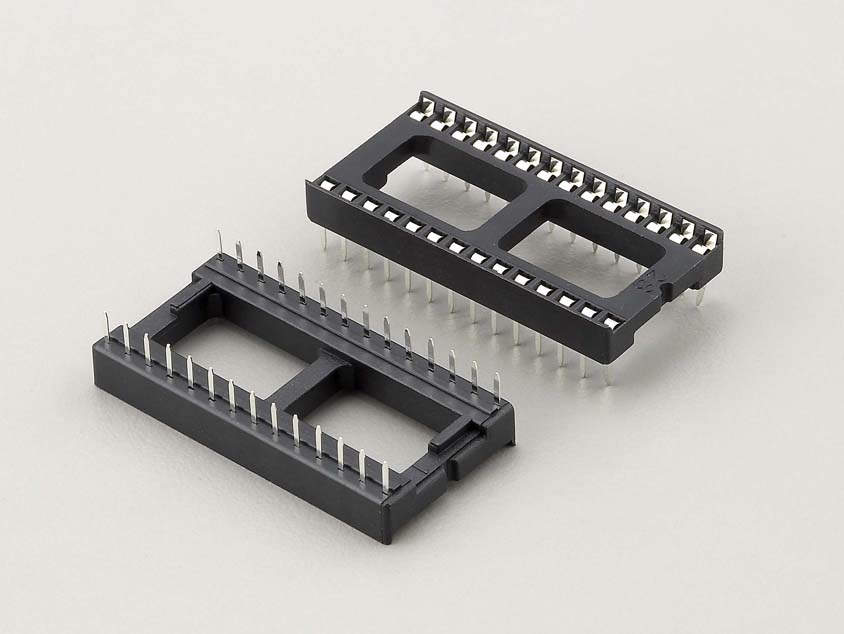

254M-xxP-x IC Socket Stamping Pin

Specifications:

 Current Rating: 1A
 Dielectric Withstanding Voltage: 1000V RMS/Minute
 Insulator Resistance: 5000 Megohms Min
 Contact Resistance: 20 Milliohms Initial/30 Milliohms After Test
 Operating Temperatures: -25℃ to 85℃
 Insertion Force: 340g max. Per Contact
 Withdrawal Force: 80g min. Per Contact
 Contact: Phosphor Bronze Thickness 0.15mm
 Contact Plating, Tin Plated
 Insulator: PBT, UL 94v-0
