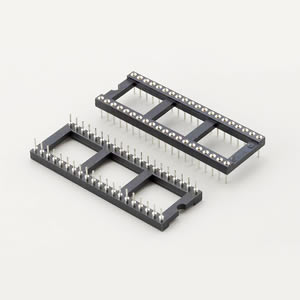

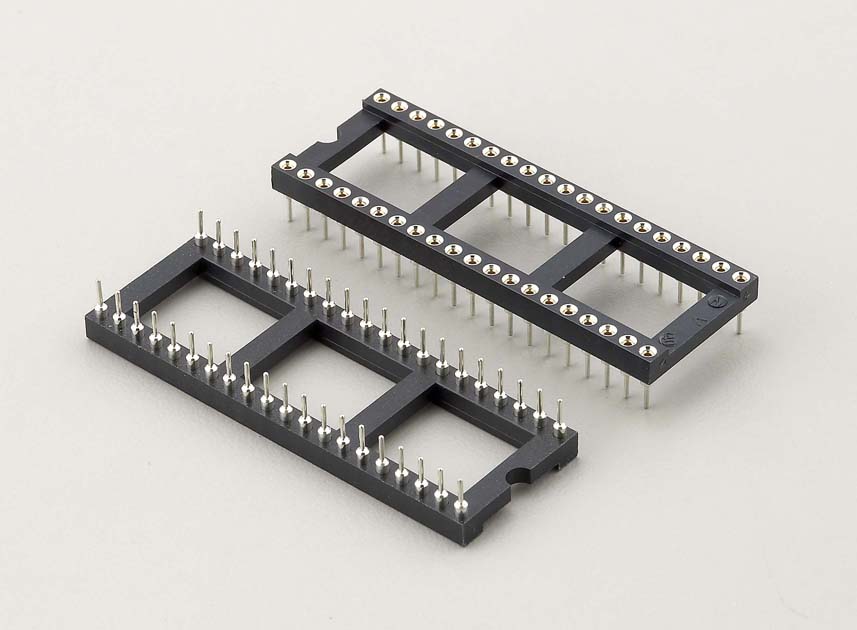

254N-xxP-x IC Socket Screw Machine Pin

Specifications:

Current Rating: 1.0a AC/DC
Voltage Rating: 100v AC/DC
Contact Resistance: 15m obm. Max
Insulator Resistance: 5000m obm. Min
Withstanding Voltage: 1000v Ac For One Minute
Operating Temperatures Range: -40℃ To +105℃
Insulator: High Temp. Plastic (PBT Ul94v-0)
Standard Color: Black
Contact: Beryllium Copper (Becu) Gold Plated
Sleeve Barrel: Copper Alloy Tin Plated
