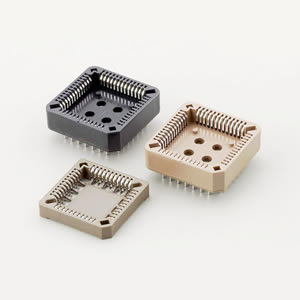

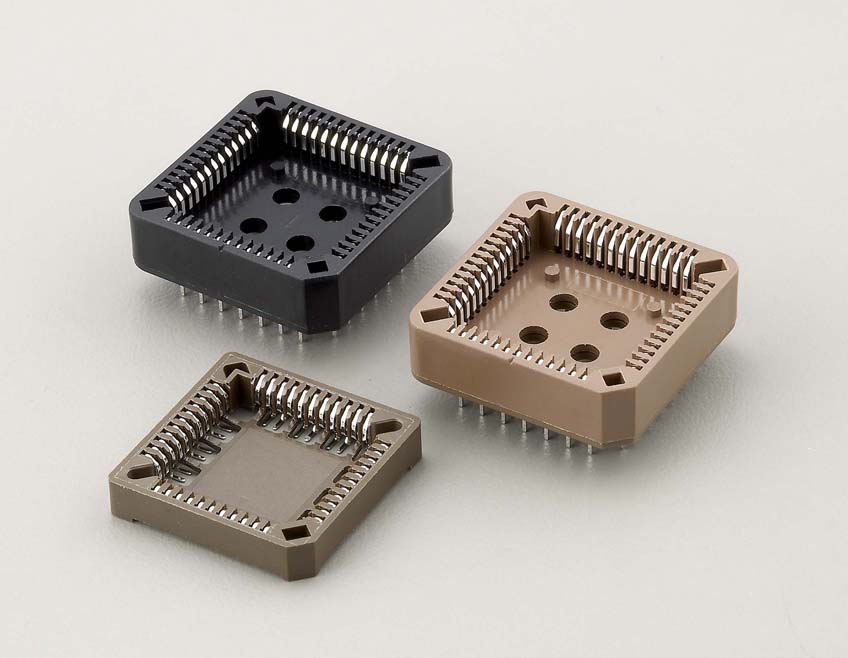

254X-D-xxP-PBT PLCC Socket (DIP)

Specifications:

Current Rating: 1 AMP
Voltage: 250 AC/DC Max.
Dielectric Withstanding: 500VAC For One Minute
Contact Resistance: 30m(Max)
Insulation Resistance: 1000m(Min)
Operating Temperature: -25℃~+85℃
Retention Force: 0.30kg Per Pin(Min)
Insulator: Pbt+30%Gf UL 94v-0
Contacts: Phosphor Bronze
Contact Plated Tin
