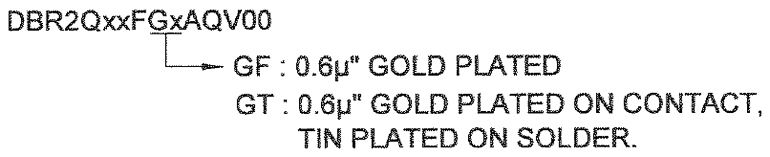

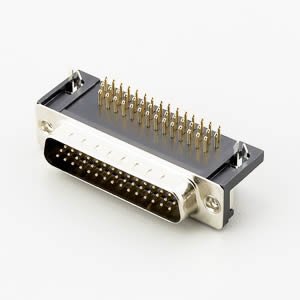

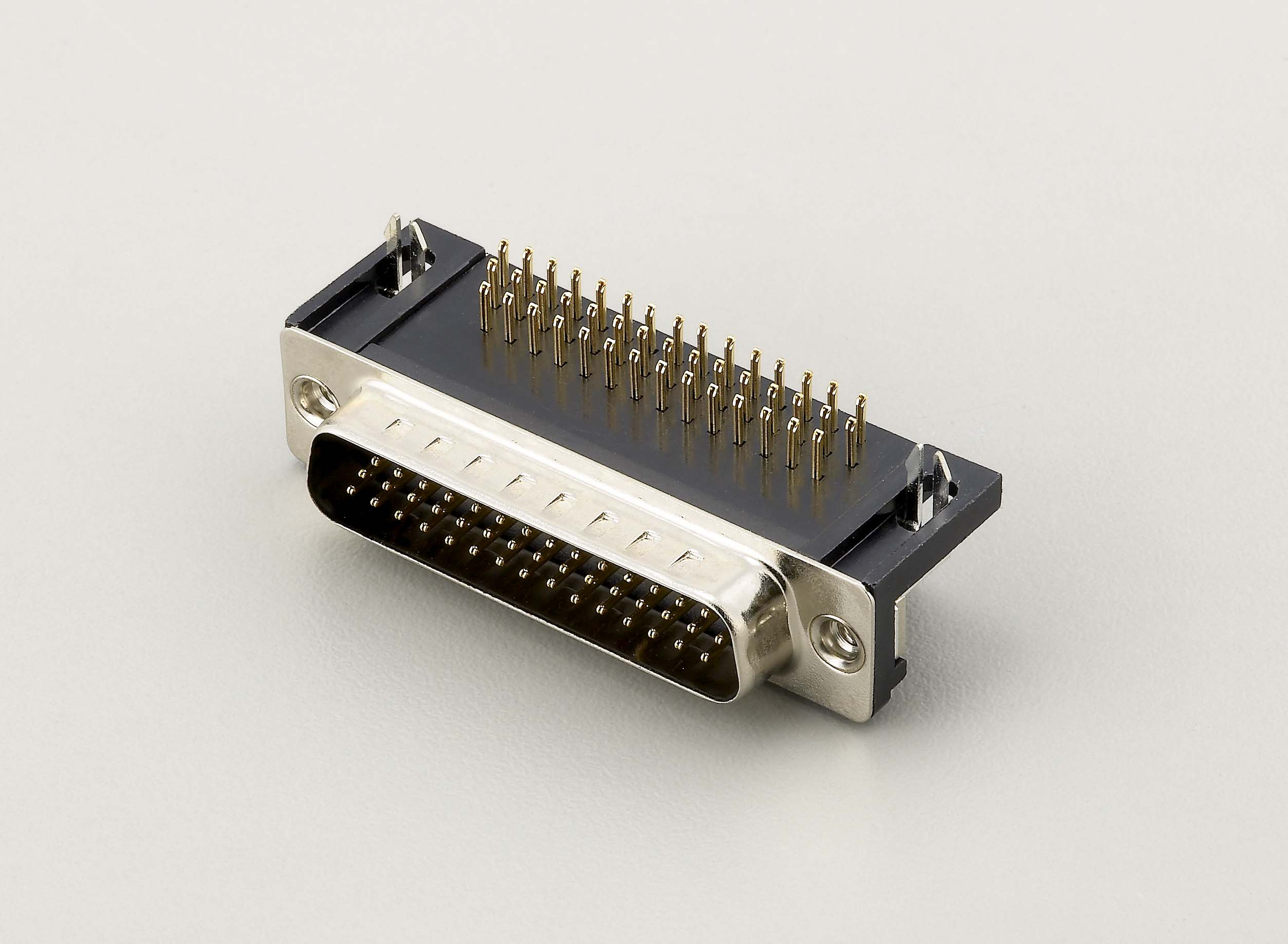

DBR2QxxFGxAQV00 D-SUB / PCB Right Angle

Specifications:

Current Rating : 2a
Dielectric Withstanding Voltage: 1000v Ac/ Minute
Contact Resistance: 15megohms Max
Insulation Resistance: 1000 Milliohms Min.
Operating Temperature: -55 ℃~+105℃
Insulator: Pbt+30 % Glass Fiber (Ul94v-0)
Contact Material : Brass
Contact Finish : Gold Over Nickel Or Tin Plated
Shell Finish : Steel Tin Plated Or Nickel Plated
