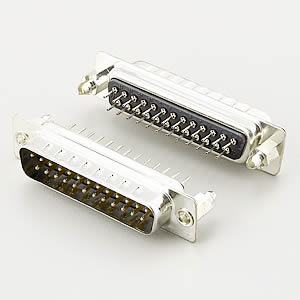

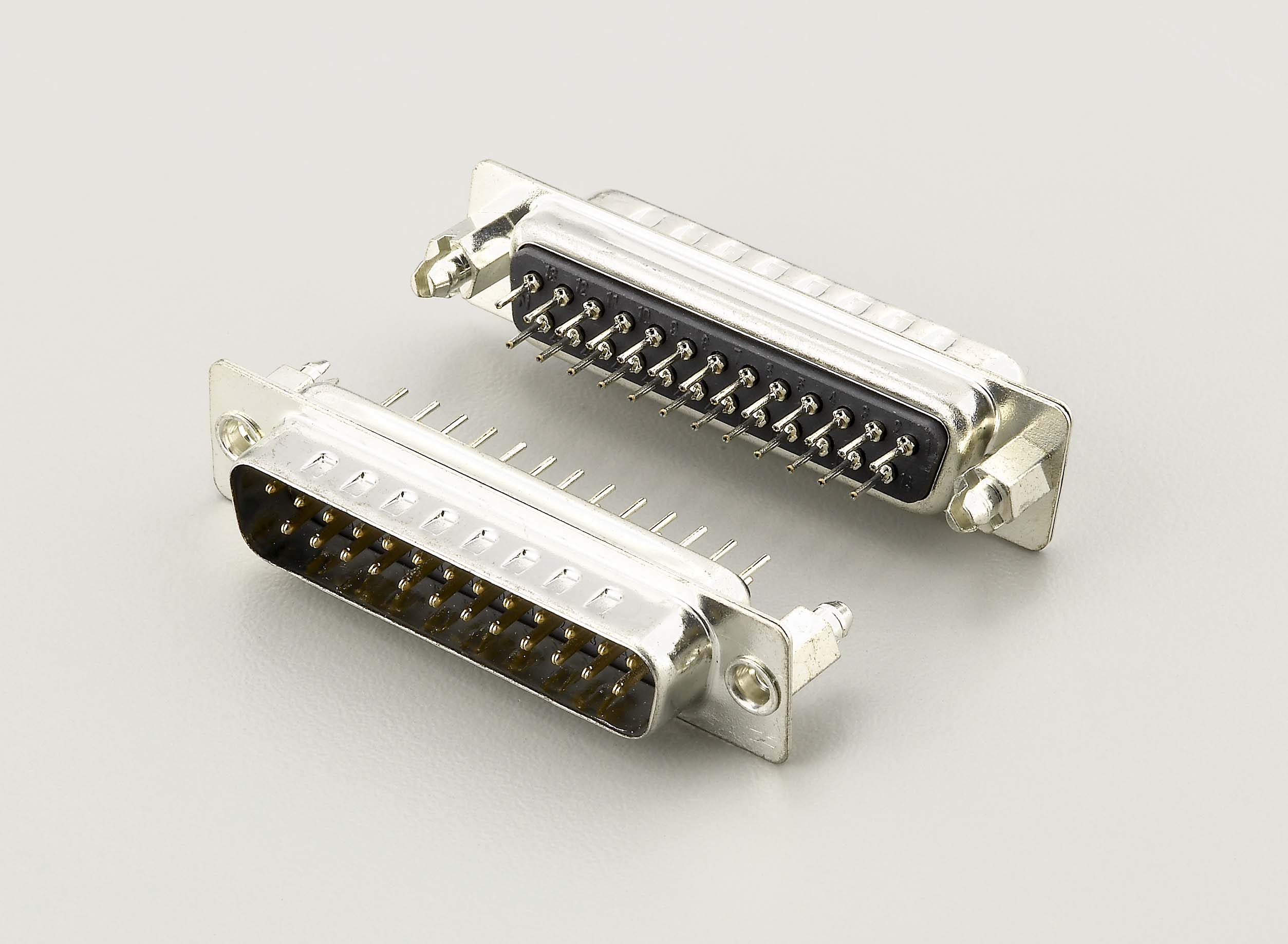

DBR2QxxFGxAQV00 D-SUB / PCB Straight Type

Specifications:

Current Rating: 5A
Voltage Rating: 350V AC
Withstand Voltage: 500V AC(RMS)
Insulator Resistance: Over 1000 Megohms
Contact Resistance: 5 Milliohms at 1A
Temperature: -40℃ To + 100℃
Material
Insulator: P.B.T +30% Grass Fiber UL94V-0
Pin Contacts: Brass or Phosphor Bronze

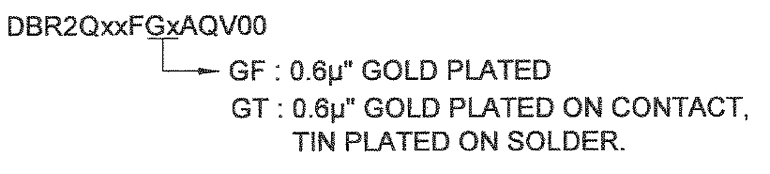

Gold Plated & Tin Plated
Shell: Steel, SPCC Nickel & Tin Plated
