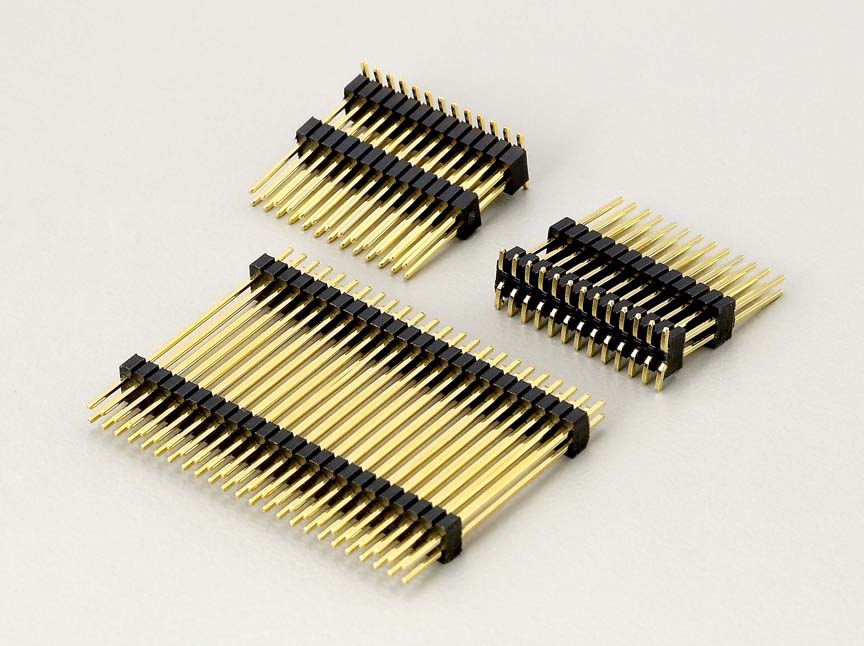

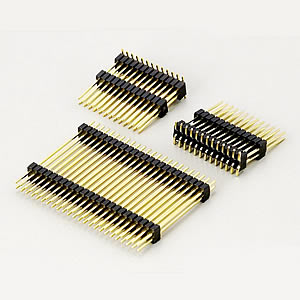

• P4MNBDxxGFCA10058000T Pin Header Multiple Base Single or Dual Rows SMT W/ or W/O Pegs

    P4MNBDxxGFCA10058000T Pin Header Multiple Base Single or Dual Rows SMT W/ or W/O Pegs

    Specifications:

    Current Rating: 1Amp
    Insulation Resistance: 1000 MΩ min.
    Contact Resistance: 20 mΩ max.
    Dielectric Withstanding : AC 300V
    Operating Temperature : -40℃~+105℃
    Max. Processing Temp. : 240 for 3~5 seconds
    Contact Material : Brass
    Insulator Material : Polyester, UL94V-0
    Standard : Nylon-6T
    Finish : 0.6u" Gold plated
    Packing : Tube
