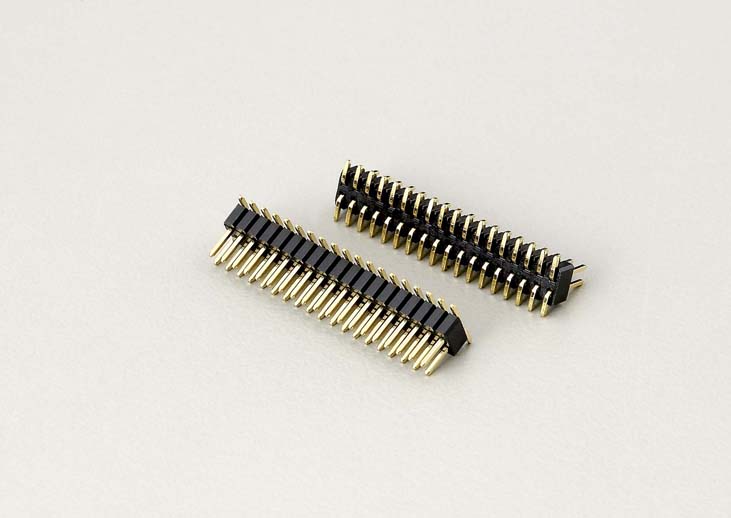

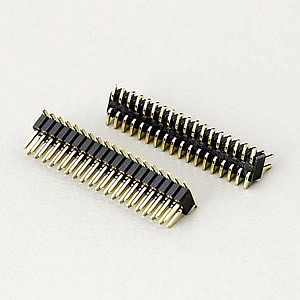

• P4MEEDxxGFCA10514000T Pin Header Dual Rows SMT Side Entry W/ or W/O Pegs
    P4MEEDxxGFCA10514000T Pin Header Dual Rows SMT Side Entry W/ or W/O Pegs

    P4MEEDxxGFCA10514000T Pin Header Dual Rows SMT Side Entry W/ or W/O Pegs

    Specifications:

    Current Rating: 1A
    Insulation Resistance: 1000 MΩ min.
    Contact Resistance: 20 mΩ max.
    Dielectric Withstanding : AC 300V
    Operating Temperature : -40℃~+105℃
    Contact Material : Brass
    Insulator Material : Nylon-6T, UL94V-0(Black)
    Finish : 0.6u" Gold plated on contact area
    Packing : Tube
