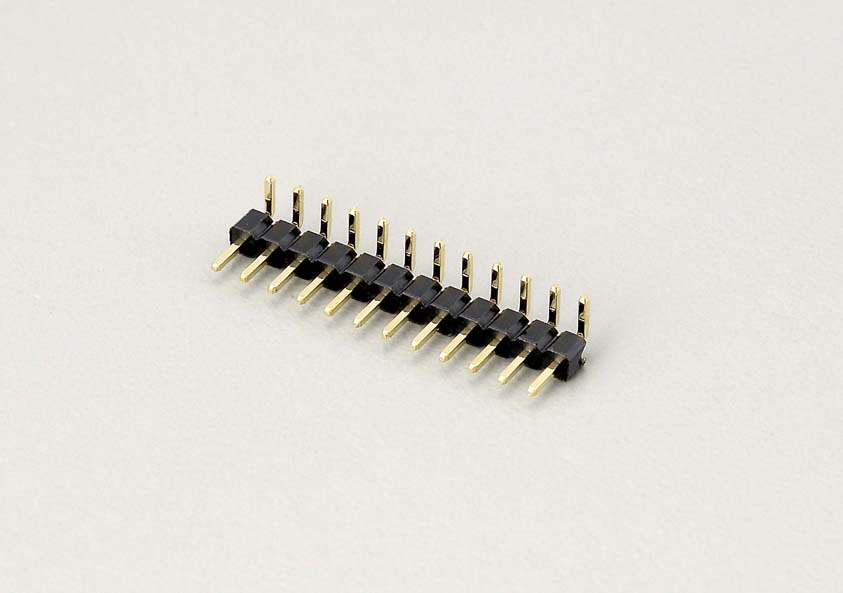

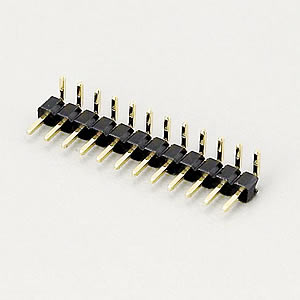

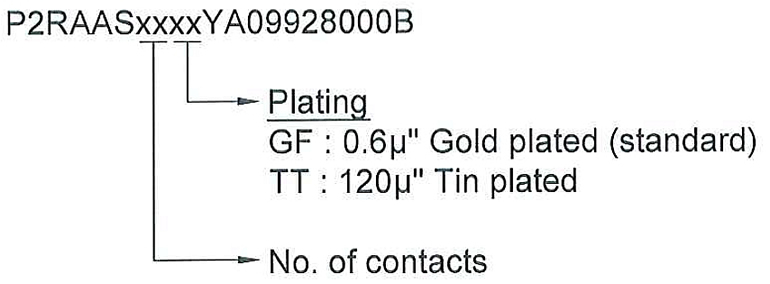

P2RAASxxxxYA09928000B Pin Header Single Row Right Angle

Specifications:

Current & Voltage Rating: 2A & 20Vac max.
Insulation Resistance: 3000 MΩ min.
Contact Resistance: 20 mΩ max.
Dielectric Withstanding : AC 500V
Operating Temperature : -40℃~+105℃
Max. Processing Temp. : 250℃ for 3~5 seconds
Contact Material : Brass
Insulator Material : Polyester, UL94V-0, Nylon-6T(H.F.)
Finish : 0.6u" Gold plated/120u" Tin plated
