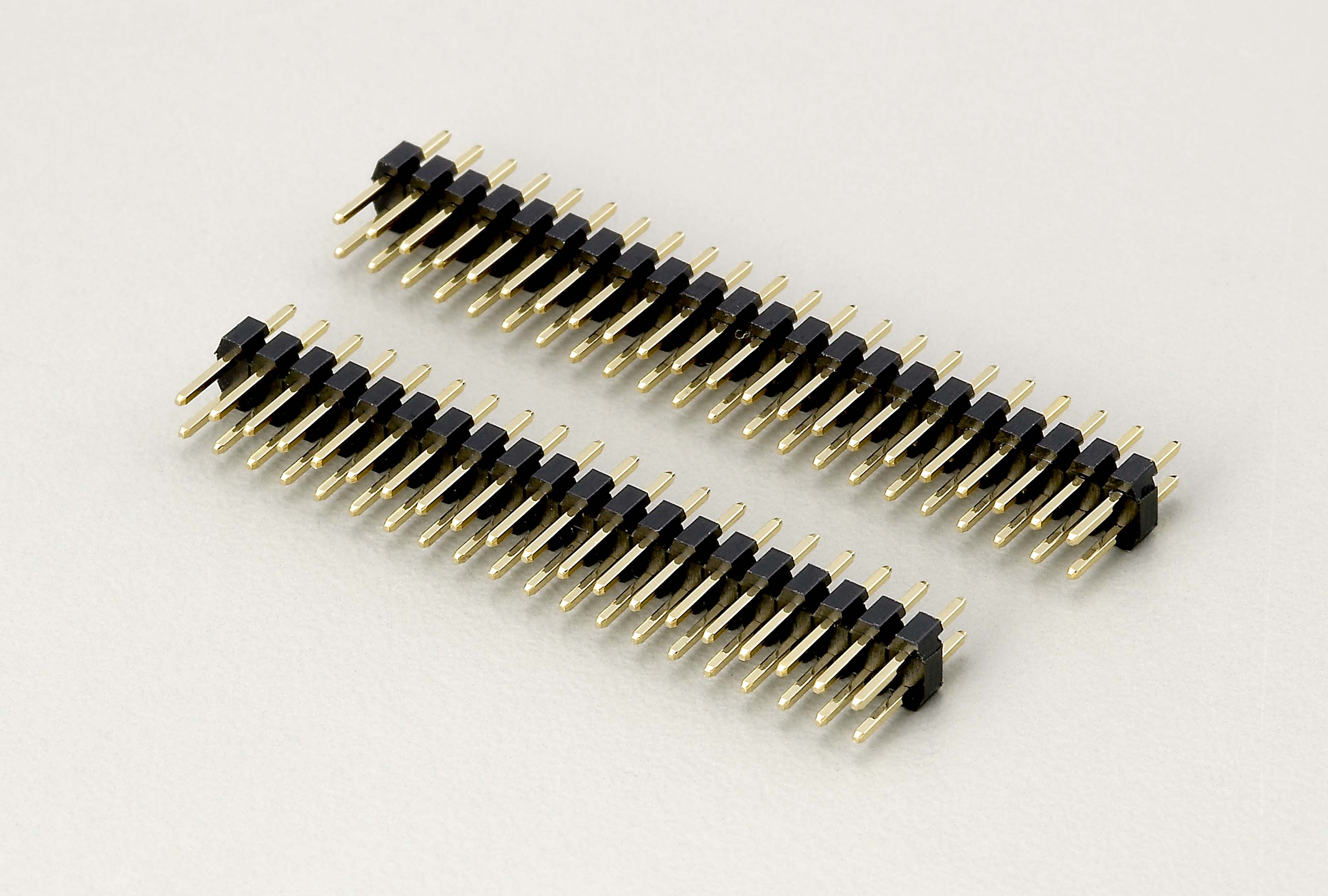

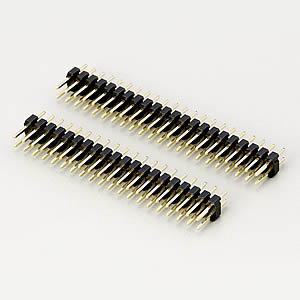

P2SABxxxxxA08830000B Pin Header Dual Rows Straight

Specifications:

Current & Voltage Rating: 2A & 20Vac max.
Insulation Resistance: 3000 MΩ min.
Contact Resistance: 20 mΩ max.
Dielectric Withstanding : AC 500V
Operating Temperature : -25℃~+85℃(PBT)/-40℃~+105℃(LCP/NY6T)
Max. Processing Temp. : 245±5℃ for 3~5 seconds(NY6T)/260±10℃ for 3~5 seconds(LCP)
Contact Material : Brass
Insulator Material : PBT/Nylon-6T/LCP/Nylon-6T(H.F.),UL94V-0(Black)

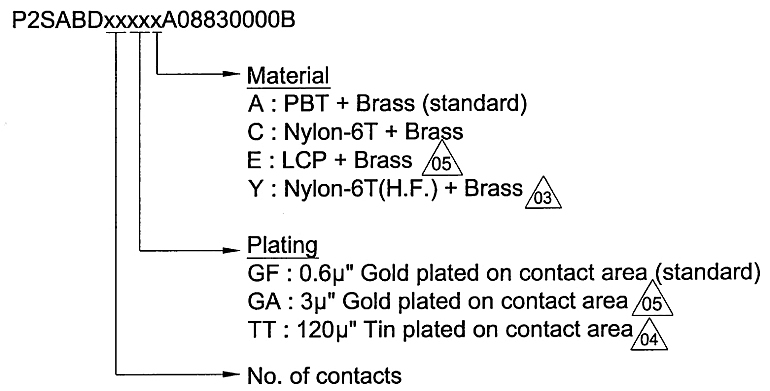

Finish : See order information
Packing : Bag
