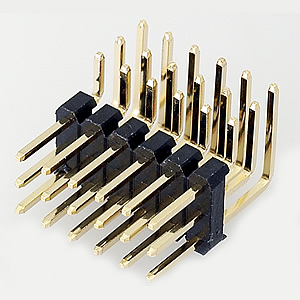

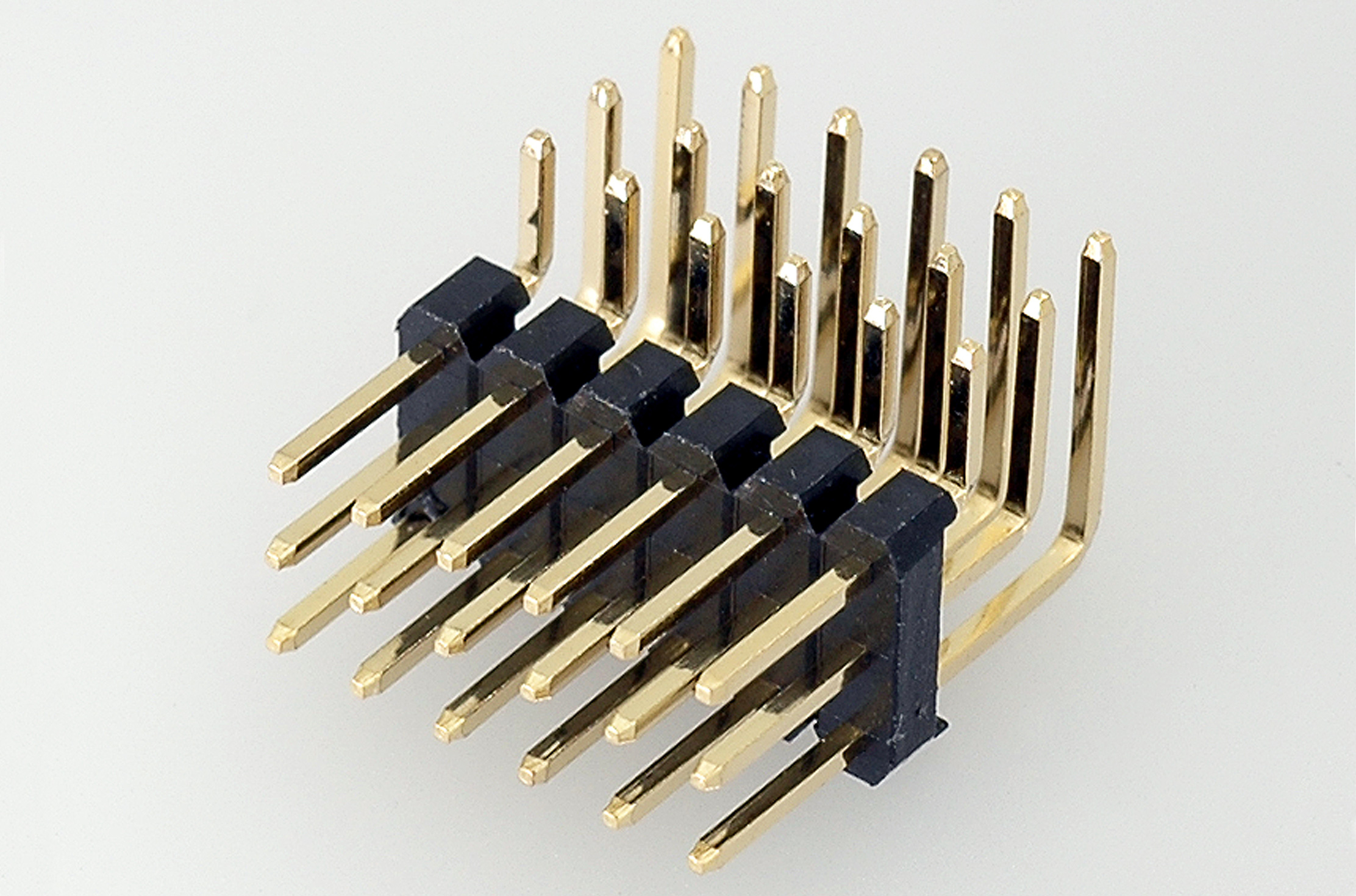

P1RACTxxGFxA13830000B Pin Header Triple Rows Right Angle

Specifications:

Current & Voltage Rating: 3A & 25Vac max.
Insulation Resistance: 5000 MΩ min.
Contact Resistance: 20 mΩ max.
Dielectric Withstanding : AC 500V
Operating Temperature : -25℃~+85℃(PBT)/-40℃~+105℃(NY6T)
Max. Processing Temp. : 245±5℃ for 3~5 seconds(NY6T)/260±10℃ for 3~5 seconds(LCP)

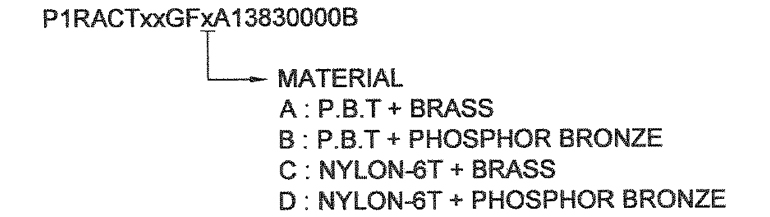

Contact Material : Brass/Phosphor Bronze
Insulator Material : PBT/Nylon-6T/Polyester, UL94V-0
Finish : 0.6u" Gold plated
