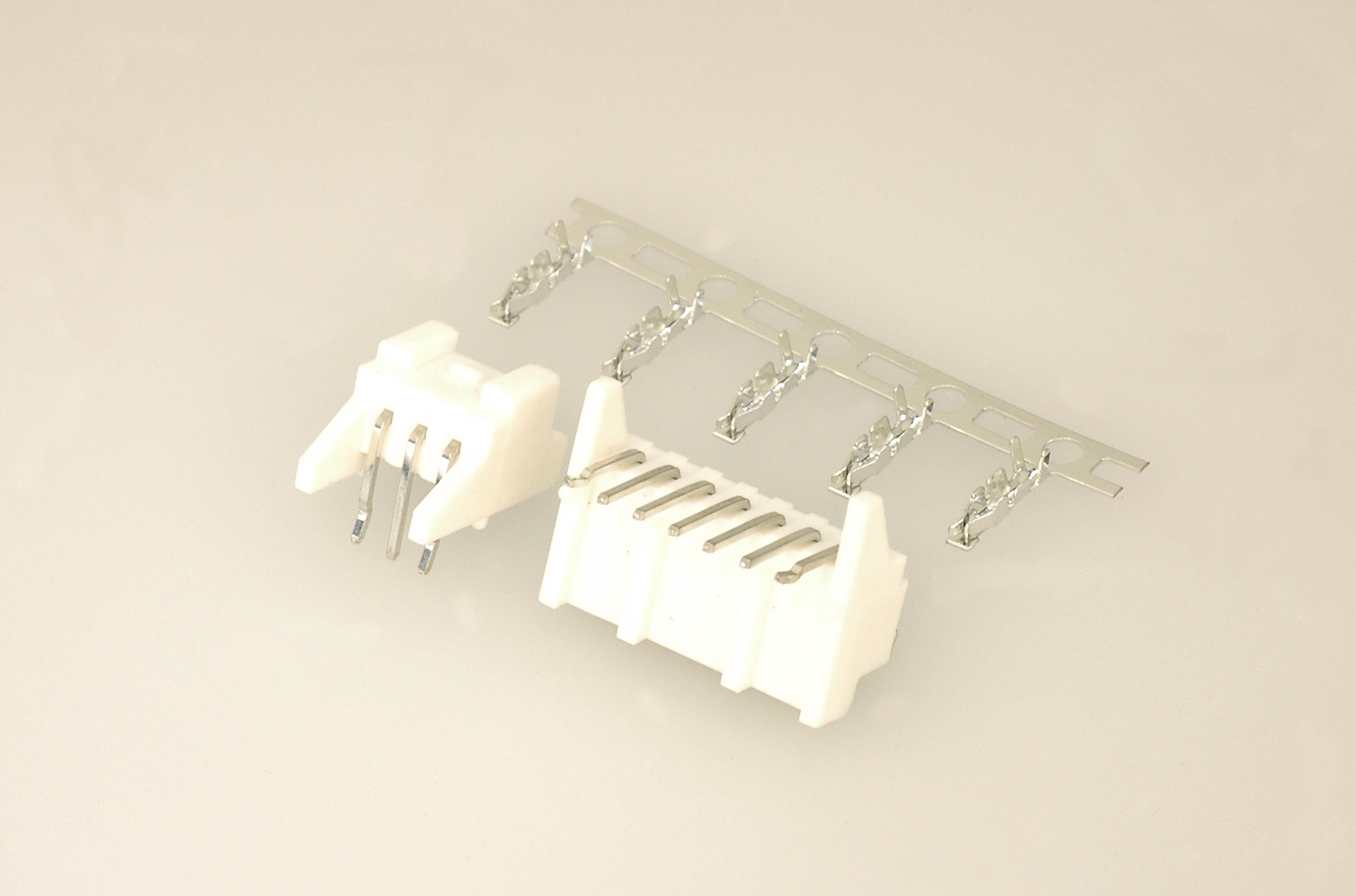

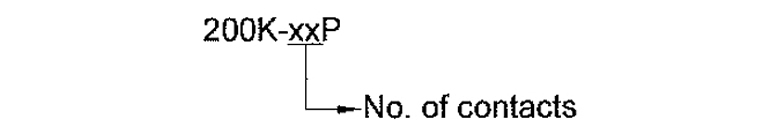

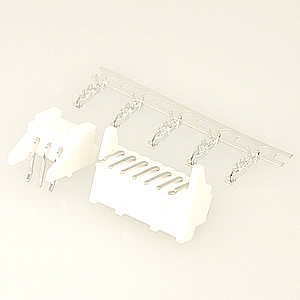

200K-xxP Wire to Board Connector

Specifications:

Current Rating : 3A AC/DC max. AWG#22
Voltage Rating : 250V AC/DC.
Insulation Resistance: 1000 MΩ min.
Contact Resistance: 20 mΩ max.
Dielectric Withstanding: AC 800v/minute
Operating Temperature: -25℃ ~ +85℃
Insulation Material: Nylon 66, UL 94v-0(Natural)
Packing : Bag
