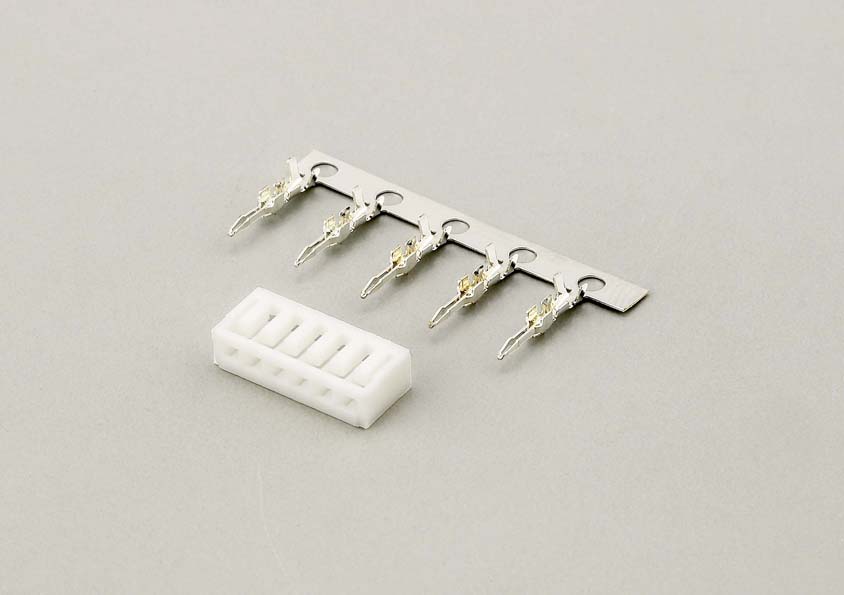

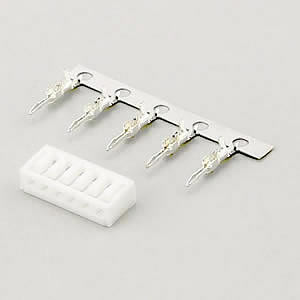

200E-TR Board-In Connector

Specifications:

Material : Brass
Thickness : 0.2
Plating : 40u'' Min.
Insulation O.D :1.57 Max.
Wire Range : (AWG)#24-30
Voltage Rating : 250V AC, DC
Current Rating : 2A AC, DC
Temperature Range: -25℃ ~ +85℃
Withstanding Voltage : 1000 AC/minute
Applicable P.C. Board : 1.2~1.6mm
P.C. Board Hole Dimension : Ø0.8mm
