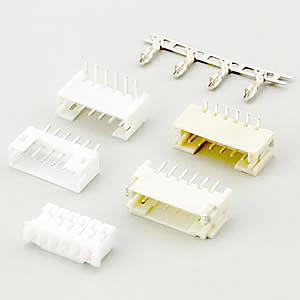

200F-WS-xxx Wire to Board Connector

Specifications:

Electrical
Voltage Rating : 100V(AC)
Current Rating : 2A
Contact Resistance : 20 mΩ MAX.
Dielectric Withstanding Voltage : 800V AC
Insulation Resistance : 1000 MΩ min.
Material
Circuits : 2~16
Insulator : Nylon 66, UL 94V-0
Color : White
Contact : Brass 0.5omm square pin

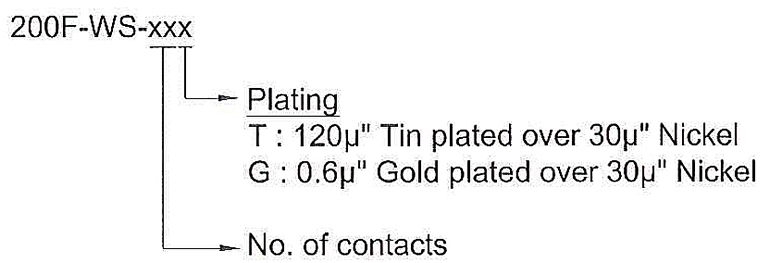

Plating : Tin plated / Gold plated
Temperature Range : -25°C ~ +85°C
Applicable PC Board Thickness : 0.8 to 1.6mm
Packing : Bag
