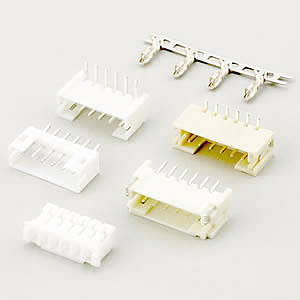

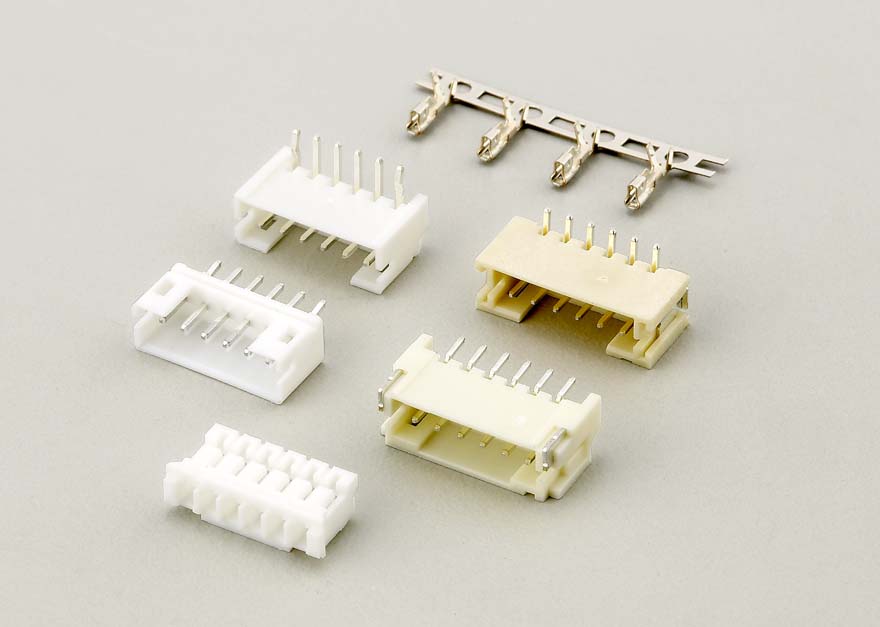

200F-WR-xxx Wire to Board Connector

Specifications:

Current & Voltage Rating: 2A & 20Vac max.
Insulation Resistance: 1000 MΩ min.
Contact Resistance: 20 mΩ max.
Dielectric Withstanding : AC 800V
Operating Temperature : -25℃~+85℃
Contact Material : Brass
Insulator Material : Nylon-66,UL94V-0

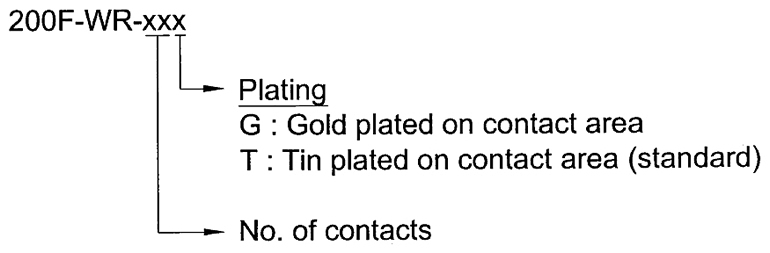

Finish : Gold plated on contact area/Tin plated on contact area
Applicable PC Board Thickness : 0.8 to 1.6mm
Packing : Bag
