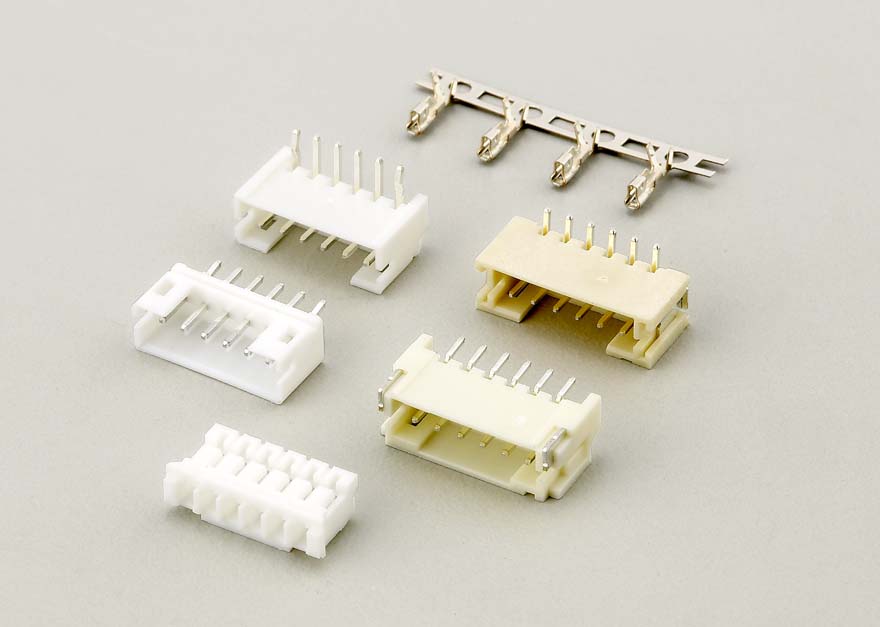

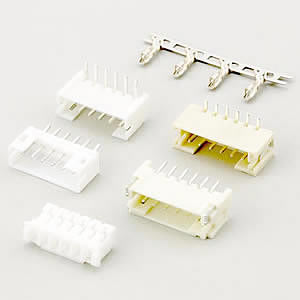

200F-SR-xxT Wire to Board Connector

Specifications:

Current Rating: 2A AC, DC
Voltage Rating: 100V AC, DC
Insulation Resistance: 1000 MΩ min.
Contact Resistance: 20 mΩ max.
Dielectric Withstanding : AC 800V
Temperature Range : -25℃~+85℃
Contact Material : Brass
Insulator Material : Nylon-6T,UL94V-0
Finish : Tin plated over Nickel
Applicable PC Board Thickness : 0.8 to 1.6mm
