• 250C-xxP Wire to Board Connector

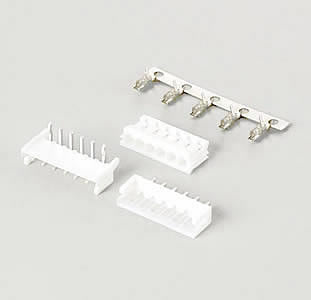

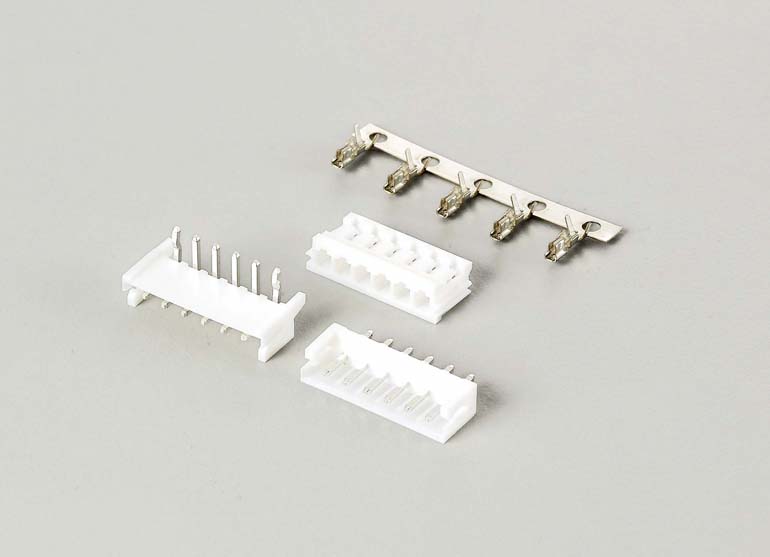

    250C-xxP Wire to Board Connector

    Specifications:

    Current Rating: 2.5A AC, DC
    Voltage Rating: 250V AC, DC
    Temperature Range : -25℃~+85℃
    Contact Resistance: 10 mΩ max.
    Insulation Resistance: 1000 MΩ min.
    Withstanding Voltage : 800V AC/Minute
    Material : Nylon-66
    Poles : 2-15
