• 250C-WS-xxT Wire to Board Connector

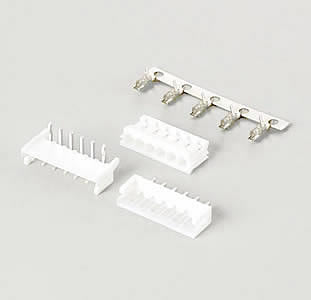

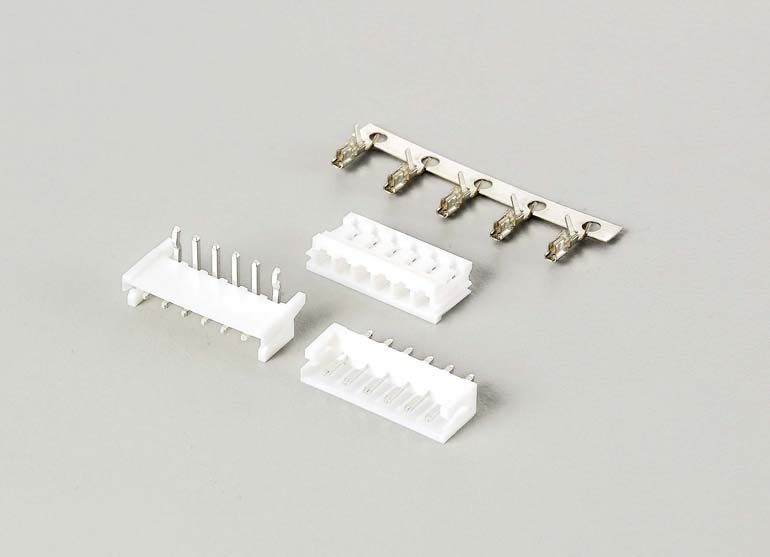

    250C-WS-xxT Wire to Board Connector

    Specifications:

    Current Rating: 3A AC, DC
    Voltage Rating: 250V AC max.
    Operating Temperature : -40℃~+85℃
    Insulation Resistance: 1000 MΩ min.
    Dielectric Withstanding : 800V AC/Min.
    Contact Resistance: 10 mΩ max.
    Terminal Material : Brass, Copper-Undercoated,/Tin Plated
    Material : Nylon66,UL94V-0
