• 250C-WR-xxT Wire to Board Connector

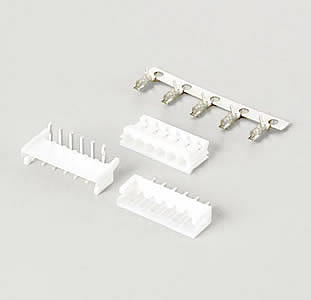

    250C-WR-xxT Wire to Board Connector

    Specifications:

    Current Rating: 2.5A AC, DC
    Voltage Rating: 250V AC max.
    Operating Temperature : -25℃~+85℃
    Insulation Resistance: 1000 MΩ min.
    Dielectric Withstanding Voltage : 800V AC/Min.
    Contact Resistance: 10 mΩ max.
    Terminal Material : Brass, Copper-Undercoated,/Tin Plated
    Material : Nylon66,UL94V-0
