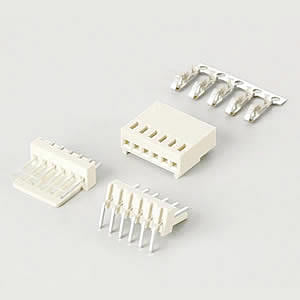

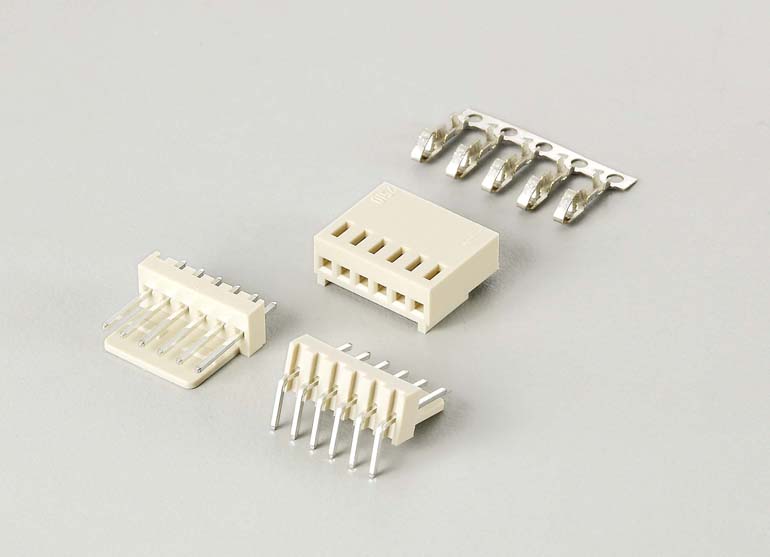

• 254K-WS-xxT Wire to Board Connector

    254K-WS-xxT Wire to Board Connector

    Specifications:

    Current Rating: 3A
    Insulation Resistance: 1000 MΩ min.
    Contact Resistance: 20 mΩ max.
    Dielectric Withstanding : 1000V AC/min.
    Operating Temperature : -40℃~+105℃
    Contact Material : Brass
    Insulator Material : Polyester UL-90V-2
    Standard : Nylon 66
    Finish : Gold or Tin plated

    PDF
