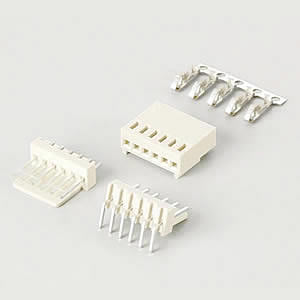

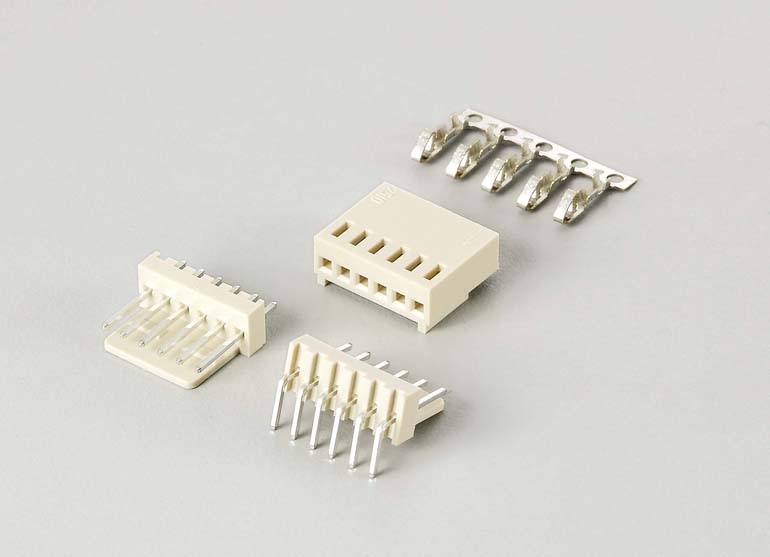

254K-WR-xxT Wire to Board Connector

Specifications:

Poles : 2-20
Material : Insulator : Nylon UL 94V-2,Color Ivory
Contact : 0.64mm Square Pin, Brass Tin Plated 60u"
Current Rating : 3A AC, DC
Voltage Rating : 250V AC, DC
Temperature Range : -25℃~+85℃
Insulation Resistance : 1000 MΩ min.
Withstand Voltage : 1000V AC/minute
Applicable PC Board Thickness : 1.6mm
