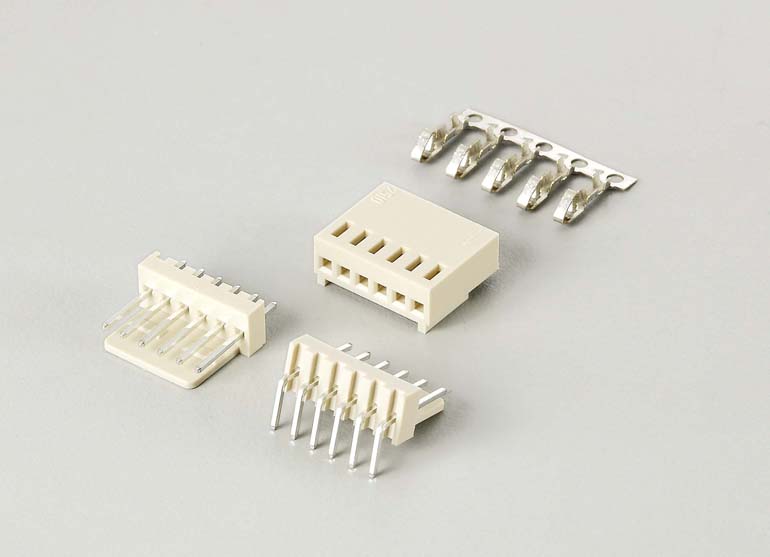

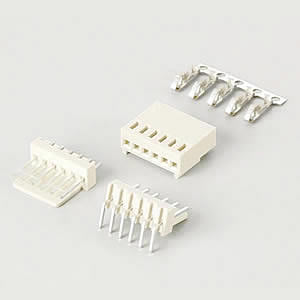

• 254K-WR-xxT-F Wire to Board Connector

    254K-WR-xxT-F Wire to Board Connector

    Specifications:

    Size 2 to 20 Circuits
    Current Rating : 3A AC, DC
    Voltage Rating : 250V AC, DC
    Insulation Resistance : 1000 MΩ min.
    Dielectric Withstanding Voltage : 1500V AC/min.
    Contact Resistance: 10 mΩ max.
    Operating Temp : -25℃~+85℃
    Material : Nylon 66, UL 94V-2
    Terminal Material : Brass/Tin-plated/Gold-plated

    PDF
