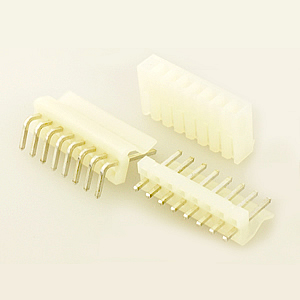

• 396A-T-TB Wire to Board Connector

    396A-T-TB Wire to Board Connector

    Specifications:

    Material : Brass
    Thickness : 0.25
    Hardness : SH
    Plating : Tin 40u" min.
    Wire Range : 18-24AWG.
    Insulation O.D. : 2.8 Max.
    Contact Resistance : 10 mΩ max.
    Insulation Resistance : 1000 MΩ min.
    Voltage Rating : AC, DC, 250V
    Current Rating : AC, DC, 10A
    Temperature Range :  -25℃~+85℃
