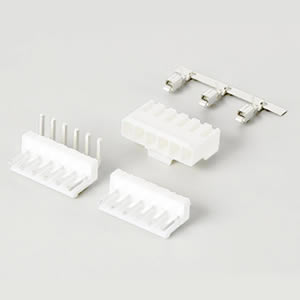

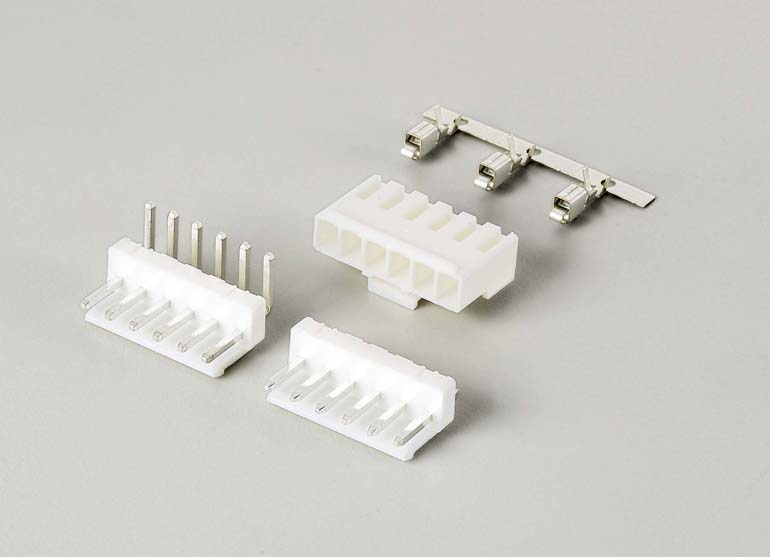

• 396C-WS-xxT Wire to Board Connector

    396C-WS-xxT Wire to Board Connector

    Specifications:

    Shell : Nylon66, UL94V-0
    Terminal : Brass, Tin Plated.
    Current Rating : 5A AC, DC
    Voltage Rating : 250V AC, DC
    Contact Resistance : 20 mΩ max.
    Voltage Withstanding : 500V AC for 1 min.
    Insulation Resistance : 1000 MΩ/ min.
    Operation Temp : -40℃~+105℃
