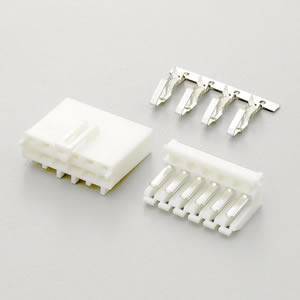

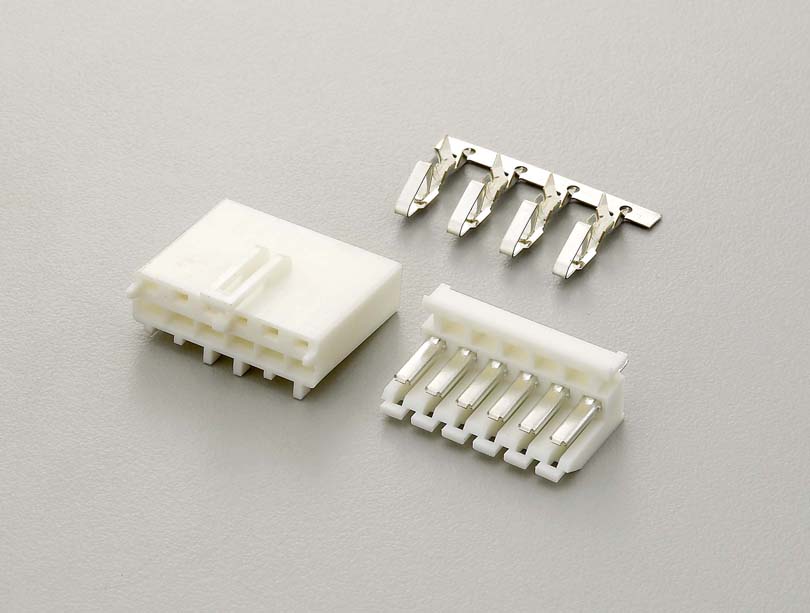

• 396D-WS-06G Wire to Board Power Connector

    396D-WS-06G Wire to Board Power Connector

    Specifications:

    Current & Voltage Rating : 7A & 250V AC, DC
    Insulation Resistance : 1000 MΩ/ min.
    Dielectric Withstanding : 1500V AC/ min.
    Operation Temp : -25℃~+105℃
    Contact Material : Brass
    Insulator Material : Nylon66, UL94V-2 (White)
    Finish : Gold plated
    Packing : Bag
