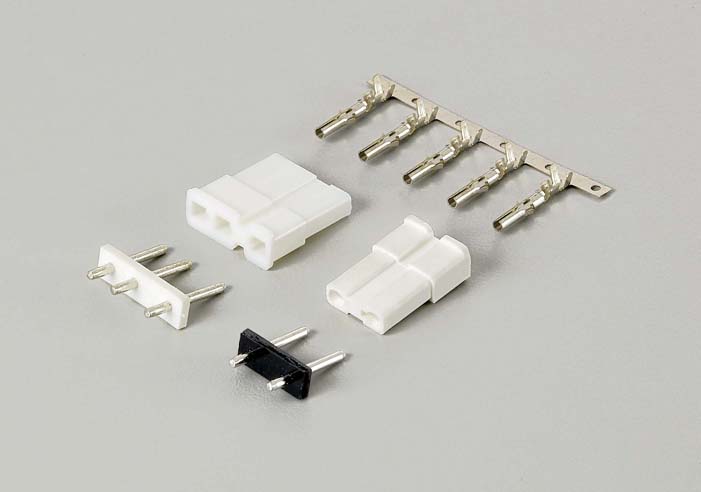

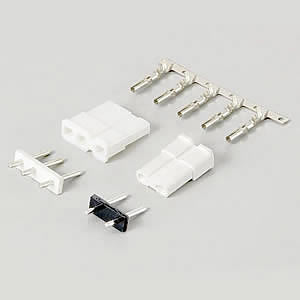

• 4155A-WS-04T-A Wire to Board Power Connector

    4155A-WS-04T-A Wire to Board Power Connector

    Specifications:

    Poles : 1-6
    Current Rating : 5A AC, DC 250V
    Withstanding Voltage : 1500V AC/ min.
    Insulation Resistance : 1000 MΩ/ min.
    Operation Temp : -25℃~+85℃
    Contact Resistance : Initial value/10 mΩ max. after environment testing/20 mΩ max.
    Pin : Brass, Tin plated
    Insulator Material : Phenolic Bakelite (94V-0)
