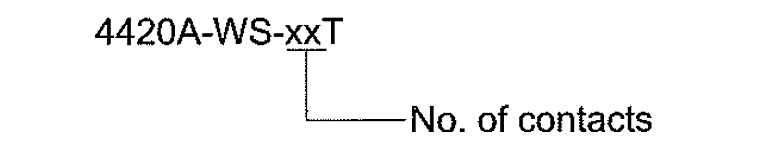

• 4420A-WS-xxT Wire To Board Power Connector
    4420A-WS-xxT Wire To Board Power Connector

    4420A-WS-xxT Wire To Board Power Connector

    Specifications:

    Poles : 2~24
    Current & Voltage Rating : 7A & 250V AC. DC
    Insulation Resistance : 1000 MΩ/ min.
    Dielectric Withstanding Voltage : 1500V AC/ min.
    Operation Temp : -25℃~+85℃
    Contact Material : Brass, Tin plated 60u"
    Insulator Material : Nylon-66, UL 94V-2(White)
    Applicable PC Board Thickness : 1.6mm
    Packing : Bag
