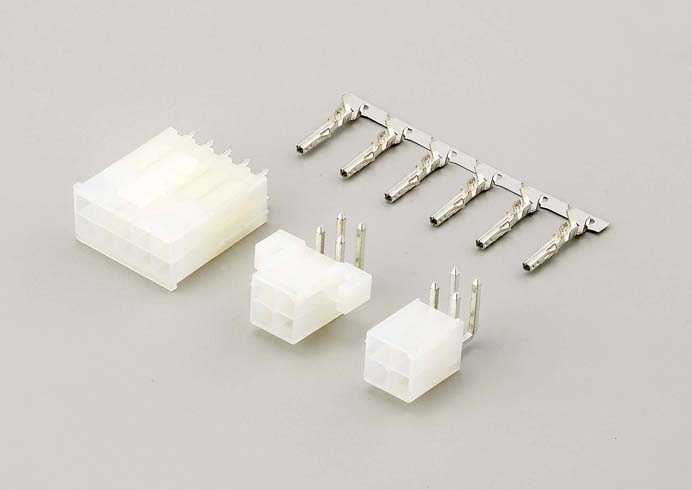

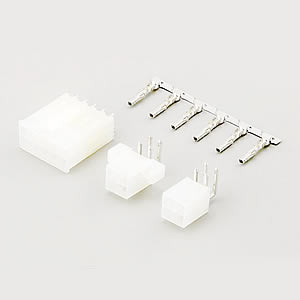

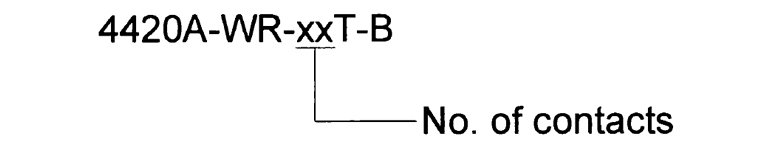

4420A-WR-xxT-B Wire To Board Power Connector

Specifications:

Poles : 2~24
Current & Voltage Rating : 7A & 250V AC. DC
Insulation Resistance : 1000 MΩ/ min.
Contact Resistance : 20 mΩ max.
Dielectric Withstanding Voltage : 1500V AC/ min.
Operation Temp : -25℃~+85℃
Contact Material :Brass
Insulator Material : Nylon-66, UL 94V-2(White)
Finish : Tin plated
Applicable PC Board Thickness : 1.6mm
Packing : Bag
