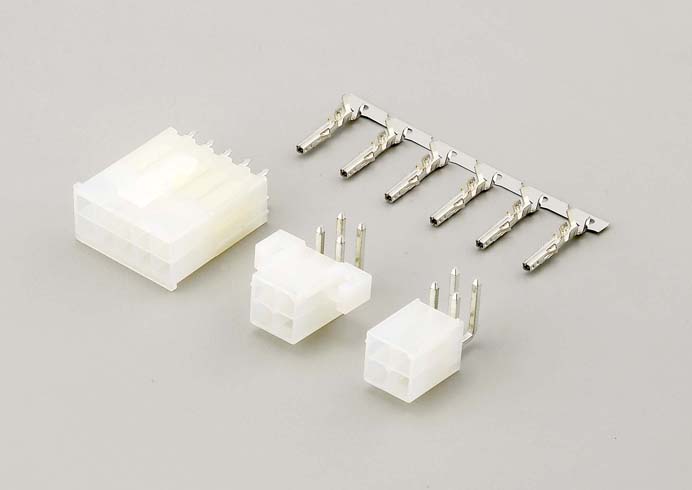

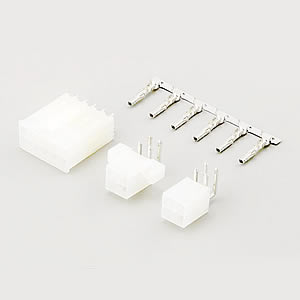

• 4420A-WR-xxT-E Wire To Board Power Connector

    4420A-WR-xxT-E Wire To Board Power Connector

    Specifications:

    Available in 2 thru 24 Circuit
    Voltage Rating 600V(R.M.S)
    Current Ration 9 AMPS per Circuit
    Accepts .45"(1.14mm)Square Pins Tin-plated
    Headers Pin-Brass Tin-plated
    Housing : UL 94V-2 Nylon66
    Withstanding Voltage : 1500V AC for 60
    Insulation Resistance : 1000 MΩ min
    Temperature Rise : 30℃ max
    Storage Temperature Range : -40℃ to 105℃
