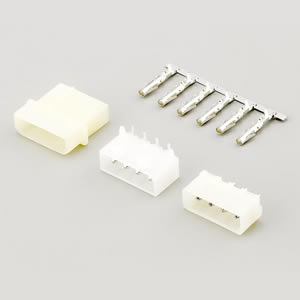

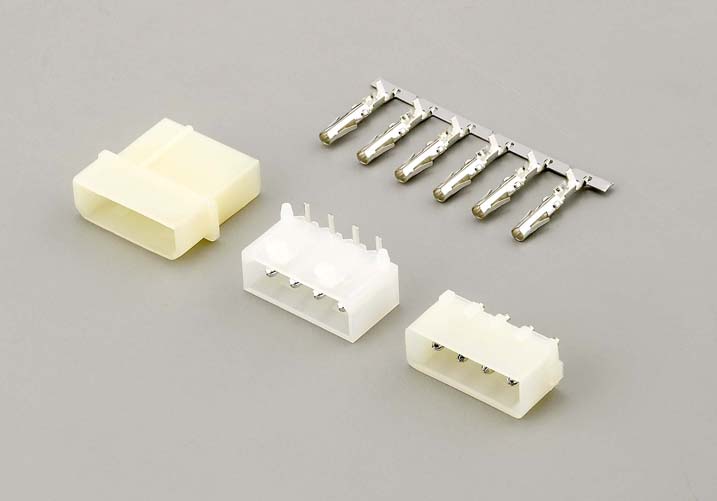

    4508B-TS-04 Wire to Board Power Connector

    Specifications:

    Material : Nylon 66, UL 94V-2
    Current Rating : 5A AC/DC
    Voltage Ration : 250V AC/DC
    Finish : Tin plated
    Operation Temp : -25℃~+85℃
    Contact Resistance: 10 mΩ max.
    Insulation Resistance : 1000 MΩ/ min.
    Withstanding Voltage : 1500V AC/ min.
