• Wire to Board Power Connector

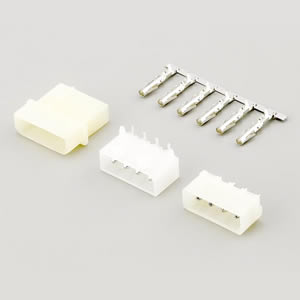

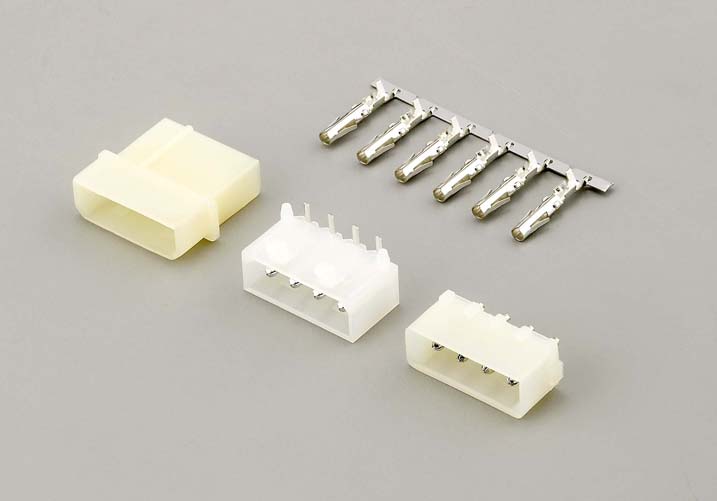

    Wire to Board Power Connector

    Specifications:

    Current Rating : 5A AC/DC
    Voltage Ration : 250V AC/DC
    Temperature Range : -25℃~+85℃
    Insulation Resistance : 1000 MΩ/ min.
    Withstanding Voltage : 1500V AC/ min.
    Applicable PC Board Thickness : .063"(1.6mm)
    Material : Insulator : Nylon 66, UL 94V-2
    Material : Post : Brass, Tin plated
    Poles : 4
