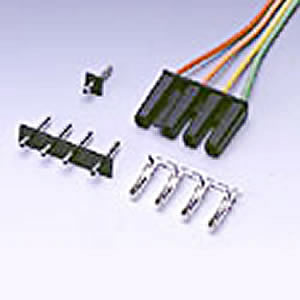

4236A-WS-xxT Wire to Board Power Connector

Specifications:

Poles : 1~6
Current & Voltage Rating : 5A, AC, DC, 250V
Withstanding Voltage : 1500V AC/ min.
Insulation Resistance : 1000 MΩ/ min.
Temperature Range : -25℃~+85℃
Contact Resistance : Initial Values/10 mΩ/ max.
After Environmental Testing/20 mΩ max.
Pin : Brass, Tin plated
Insulator Material : Phenolic Bakelite(94V-0)
